SUN HYDRAULICS
CNJCXFV
$182.08 USD
- SUN HYDRAULICS
- Material:CNJCXFV
- Model:CNJC-XFV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNJCXFV (CNJCXFV) is a highly versatile hydraulic check valve designed for efficient fluid control in various hydraulic systems. This model features a free flow from port 1 to port 2, facilitated by a customer-specified bypass orifice, which also restricts flow from port 2 to port 1, ensuring precise control over fluid direction and pressure. The orifice range for this model spans from 0.016 to 0.354 inches (0.4 to 9 mm), allowing for customization according to specific system requirements. Constructed to fit the T18A cavity and part of the Series 4 lineup, the CNJCXFV can handle a maximum operating pressure of up to 5000 psi (350 bar) and has a capacity of up to 120 gpm (480 L/min). This robust performance is complemented by its corrosion-resistant features, making it suitable for use in environments where durability and longevity are critical. The valve's design incorporates Sun\u2019s floating style construction which minimizes internal part binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This feature enhances the reliability and maintenance ease of the valve. For installation, the valve requires a torque between 350 -375 lbf ft (474 -508 Nm) and has a hex size of 1-5/8 inches (41.3 mm). Moreover, each cartridge's hex face is stamped with the specified orifice diameter, ensuring easy identification and maintenance. The seal kit for this cartridge uses Viton material (990018006), known for its high performance under extreme conditions. This model's thoughtful engineering and robust construction make it an excellent choice for controlling fluid flow in high-pressure applications across various hydraulic systems.
The Sun Hydraulics CNJCXFV (CNJCXFV) is a highly versatile hydraulic check valve designed for efficient fluid control in various hydraulic systems. This model features a free flow from port 1 to port 2, facilitated by a customer-specified bypass orifice, which also restricts flow from port 2 to port 1, ensuring precise control over fluid direction and pressure. The orifice range for this model spans from 0.016 to 0.354 inches (0.4 to 9 mm), allowing for customization according to specific system requirements. Constructed to fit the T18A cavity and part of the Series 4 lineup, the CNJCXFV can handle a maximum operating pressure of up to 5000 psi (350 bar) and has a capacity of up to 120 gpm (480 L/min). This robust performance is complemented by its corrosion-resistant features, making it suitable for use in environments where durability and longevity are critical. The valve's design incorporates Sun\u2019s floating style construction which minimizes internal part binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This feature enhances the reliability and maintenance ease of the valve. For installation, the valve requires a torque between 350 -375 lbf ft (474 -508 Nm) and has a hex size of 1-5/8 inches (41.3 mm). Moreover, each cartridge's hex face is stamped with the specified orifice diameter, ensuring easy identification and maintenance. The seal kit for this cartridge uses Viton material (990018006), known for its high performance under extreme conditions. This model's thoughtful engineering and robust construction make it an excellent choice for controlling fluid flow in high-pressure applications across various hydraulic systems.

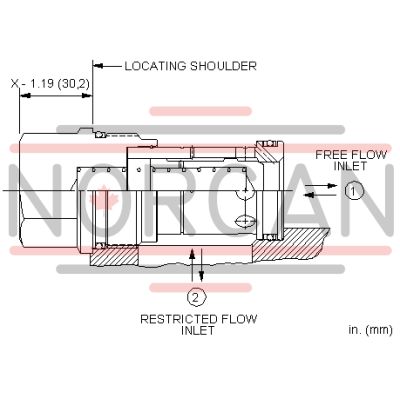

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .354 in.0,4 - 9 mm |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Seal kit - Cartridge | Viton: 990-018-006 |
