SUN HYDRAULICS
CNJCXGN
$180.59 USD
- SUN HYDRAULICS
- Material:CNJCXGN
- Model:CNJC-XGN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNJCXGN (CNJCXGN) is a robust and versatile check valve designed for high-pressure hydraulic applications, capable of handling pressures up to 5000 psi (350 bar) at ports 1 and 2. This model is part of the T18A cavity series and belongs to the Series 4, ensuring compatibility with various hydraulic systems. The valve features a customer-specified orifice, allowing customization of flow restrictions from port 2 to port 1, with an orifice range between .016 to .354 inches (0.4 to 9 mm). The unique design includes a freeflow, nose-to-side check valve with a bypass orifice that facilitates free flow from port 1 to port 2, enhancing its functionality in diverse hydraulic circuits. The CNJCXGN model incorporates Sun's floating style construction which minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design feature ensures reliable and consistent performance even under challenging conditions. The specified orifice diameter is conveniently stamped on one of the cartridge's hex faces for easy identification. This valve offers a high flow capacity of up to 120 gpm (480 L/min), making it suitable for applications requiring substantial fluid management capabilities. It is designed with corrosion-resistant materials, indicated by model code suffixes AP or LH for enhanced durability in corrosive environments. For installation, the valve hex size is specified at 1-5/8 inches (41.3 mm) with an installation torque range between 350 - 375 lbf\u00b7ft (474 - 508 Nm), ensuring secure and straightforward setup. Overall, the Sun Hydraulics CNJCXGN check valve is engineered for reliability and precision in controlling hydraulic flows within industrial systems, providing both flexibility and robustness in its operation.
The Sun Hydraulics CNJCXGN (CNJCXGN) is a robust and versatile check valve designed for high-pressure hydraulic applications, capable of handling pressures up to 5000 psi (350 bar) at ports 1 and 2. This model is part of the T18A cavity series and belongs to the Series 4, ensuring compatibility with various hydraulic systems. The valve features a customer-specified orifice, allowing customization of flow restrictions from port 2 to port 1, with an orifice range between .016 to .354 inches (0.4 to 9 mm). The unique design includes a freeflow, nose-to-side check valve with a bypass orifice that facilitates free flow from port 1 to port 2, enhancing its functionality in diverse hydraulic circuits. The CNJCXGN model incorporates Sun's floating style construction which minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design feature ensures reliable and consistent performance even under challenging conditions. The specified orifice diameter is conveniently stamped on one of the cartridge's hex faces for easy identification. This valve offers a high flow capacity of up to 120 gpm (480 L/min), making it suitable for applications requiring substantial fluid management capabilities. It is designed with corrosion-resistant materials, indicated by model code suffixes AP or LH for enhanced durability in corrosive environments. For installation, the valve hex size is specified at 1-5/8 inches (41.3 mm) with an installation torque range between 350 - 375 lbf\u00b7ft (474 - 508 Nm), ensuring secure and straightforward setup. Overall, the Sun Hydraulics CNJCXGN check valve is engineered for reliability and precision in controlling hydraulic flows within industrial systems, providing both flexibility and robustness in its operation.

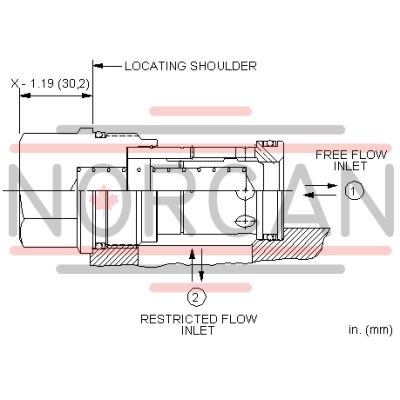

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .354 in.0,4 - 9 mm |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Seal kit - Cartridge | Viton: 990-018-006 |
