SUN HYDRAULICS
CNJCXGV
$187.04 USD
- SUN HYDRAULICS
- Material:CNJCXGV
- Model:CNJC-XGV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNJCXGV (CNJCXGV) is a high-performance hydraulic check valve designed for versatile applications requiring reliable fluid control. This model features a free-flow, nose-to-side check valve configuration with a bypass orifice, allowing unimpeded flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow in the reverse direction. The specified orifice diameter is conveniently stamped on one of the cartridge's hex faces for easy identification. Engineered to operate under high pressures, the CNJCXGV can handle up to 5000 psi (350 bar) at both ports. It fits within a T18A cavity and belongs to the Series 4 lineup from Sun Hydraulics, ensuring compatibility with standard configurations in hydraulic systems. The valve\u2019s capacity reaches up to 120 gpm (480 L/min), catering to substantial flow requirements across various applications. Notably, this model employs Sun\u2019s floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining\u2014enhancing its operational reliability and longevity. The valve installation torque required ranges between 350 - 375 lbf ft (474 - 508 Nm), and it uses a Viton seal kit (990018006) to ensure robust sealing under diverse conditions. Overall, the Sun Hydraulics CNJCXGV offers effective control in hydraulic systems, particularly suited for environments where corrosion resistance and high pressure handling are essential. Its precise construction and customizable orifice feature make it an adaptable solution for specialized hydraulic circuit requirements.
The Sun Hydraulics CNJCXGV (CNJCXGV) is a high-performance hydraulic check valve designed for versatile applications requiring reliable fluid control. This model features a free-flow, nose-to-side check valve configuration with a bypass orifice, allowing unimpeded flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow in the reverse direction. The specified orifice diameter is conveniently stamped on one of the cartridge's hex faces for easy identification. Engineered to operate under high pressures, the CNJCXGV can handle up to 5000 psi (350 bar) at both ports. It fits within a T18A cavity and belongs to the Series 4 lineup from Sun Hydraulics, ensuring compatibility with standard configurations in hydraulic systems. The valve\u2019s capacity reaches up to 120 gpm (480 L/min), catering to substantial flow requirements across various applications. Notably, this model employs Sun\u2019s floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining\u2014enhancing its operational reliability and longevity. The valve installation torque required ranges between 350 - 375 lbf ft (474 - 508 Nm), and it uses a Viton seal kit (990018006) to ensure robust sealing under diverse conditions. Overall, the Sun Hydraulics CNJCXGV offers effective control in hydraulic systems, particularly suited for environments where corrosion resistance and high pressure handling are essential. Its precise construction and customizable orifice feature make it an adaptable solution for specialized hydraulic circuit requirements.

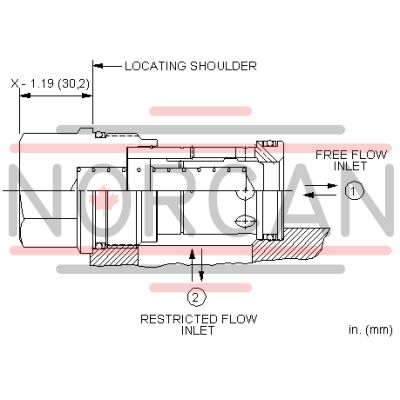

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .354 in.0,4 - 9 mm |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Seal kit - Cartridge | Viton: 990-018-006 |
