CODCXAN
$62.64 USD
- SUN HYDRAULICS
- Material:CODCXAN
- Model:CODC-XAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CODCXAN (CODCXAN) is a spring-biased closed, pilot-to-close check cartridge valve designed for hydraulic control systems. It features a nominal pilot ratio of 1.8:1, allowing it to effectively manage flow between ports in high-pressure environments. Specifically, the valve facilitates flow from port 1 to port 2 while blocking reverse flow, ensuring operational reliability and safety. The external pilot port and pressure at port 1 work in opposition at the specified pilot ratio, where pressure at the external pilot can close the valve against higher pressures at port 1. This model incorporates Sun Hydraulics' floating style construction which minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of 20 gpm (80 L/min), this valve is built for robust performance and minimal leakage, with specifications noting a maximum valve leakage rate of only one drop per minute. The CODCXAN is engineered for precise control in hydraulic systems where backflow prevention is critical. Its design ensures that with equal pressures at all ports, the valve remains closed, enhancing system integrity. This model's specifications also include a hex size of 7/8 in (22.2 mm) and an installation torque range of 30-35 lbf ft (41-47 Nm), emphasizing ease of installation with reliable performance metrics across various hydraulic applications.
The Sun Hydraulics CODCXAN (CODCXAN) is a spring-biased closed, pilot-to-close check cartridge valve designed for hydraulic control systems. It features a nominal pilot ratio of 1.8:1, allowing it to effectively manage flow between ports in high-pressure environments. Specifically, the valve facilitates flow from port 1 to port 2 while blocking reverse flow, ensuring operational reliability and safety. The external pilot port and pressure at port 1 work in opposition at the specified pilot ratio, where pressure at the external pilot can close the valve against higher pressures at port 1. This model incorporates Sun Hydraulics' floating style construction which minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. With a maximum operating pressure of 5000 psi (350 bar) and a capacity of 20 gpm (80 L/min), this valve is built for robust performance and minimal leakage, with specifications noting a maximum valve leakage rate of only one drop per minute. The CODCXAN is engineered for precise control in hydraulic systems where backflow prevention is critical. Its design ensures that with equal pressures at all ports, the valve remains closed, enhancing system integrity. This model's specifications also include a hex size of 7/8 in (22.2 mm) and an installation torque range of 30-35 lbf ft (41-47 Nm), emphasizing ease of installation with reliable performance metrics across various hydraulic applications.

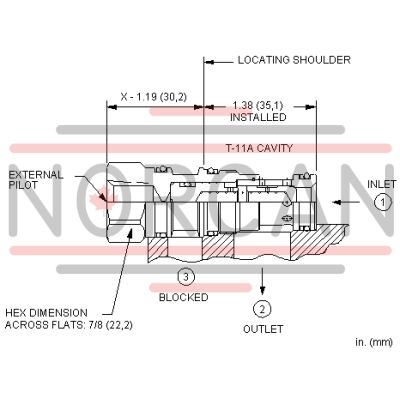

This valve is a spring biased closed, pilot-to-close check cartridge that has a 1.8:1 pilot ratio. The valve allows flow from port 1 to port 2 and blocks reverse flow. Pressure at the external pilot port opposes pressure at port 1 at a ratio of 1.8:1. Port 3 is blocked.
- Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi (70 bar) at the pilot port will close a valve against a pressure of 1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could allow the valve to open, even if it is a momentary decay or loss.
- Pressure at the port 2 area directly opposes pilot pressure.
- Reverse flow through the valve from port 2 to port 1 is not possible under any condition.
- With equal pressures at all ports the valve is closed.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Pilot Ratio | 1.8:11.8:1 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
