SUN HYDRAULICS
CODCXAV
$70.59 USD
- SUN HYDRAULICS
- Material:CODCXAV
- Model:CODC-XAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CODCXAV (CODCXAV) is a sophisticated pilot-to-close check cartridge valve designed for precise hydraulic fluid control. The valve allows flow from port 1 to port 2 while effectively blocking reverse flow from port 2 to port 1 under any condition, ensuring reliable operation in critical applications. It features a nominal pilot ratio of 1.8:1, which means that a pressure of 1000 psi at the pilot port will close the valve against a pressure of 1800 psi at port 1. This capability is crucial for systems requiring precise backflow prevention and control. Equipped with Sun's floating style construction, the CODCXAV minimizes potential internal parts binding, which can result from excessive installation torque or variations in cavity/cartridge machining. This enhances both the durability and reliability of the valve in various operational conditions. The valve is engineered to fit a T11A cavity and can handle a maximum flow capacity of 20 gpm (80 L/min) with a maximum operating pressure of 5000 psi (350 bar). Additionally, it has an exceptionally low maximum valve leakage rate at high viscosity, measured at approximately one drop per minute. Installation specifications include a valve hex size of 7/8 inches (22.2 mm) and an installation torque ranging between 30 - 35 lbf ft (41 - 47 Nm), making it versatile for different setups without requiring extensive modifications. The model itself is lightweight, weighing just about .30 lb (0.15 kg), which facilitates easy handling and installation. For maintenance or repairs, it uses a Viton seal kit designated as cartridge number: 990011006. Overall, the Sun Hydraulics CODCXAV check cartridge is an essential component for systems where precise fluid control and backflow prevention are critical, offering robust performance in a compact design.
The Sun Hydraulics CODCXAV (CODCXAV) is a sophisticated pilot-to-close check cartridge valve designed for precise hydraulic fluid control. The valve allows flow from port 1 to port 2 while effectively blocking reverse flow from port 2 to port 1 under any condition, ensuring reliable operation in critical applications. It features a nominal pilot ratio of 1.8:1, which means that a pressure of 1000 psi at the pilot port will close the valve against a pressure of 1800 psi at port 1. This capability is crucial for systems requiring precise backflow prevention and control. Equipped with Sun's floating style construction, the CODCXAV minimizes potential internal parts binding, which can result from excessive installation torque or variations in cavity/cartridge machining. This enhances both the durability and reliability of the valve in various operational conditions. The valve is engineered to fit a T11A cavity and can handle a maximum flow capacity of 20 gpm (80 L/min) with a maximum operating pressure of 5000 psi (350 bar). Additionally, it has an exceptionally low maximum valve leakage rate at high viscosity, measured at approximately one drop per minute. Installation specifications include a valve hex size of 7/8 inches (22.2 mm) and an installation torque ranging between 30 - 35 lbf ft (41 - 47 Nm), making it versatile for different setups without requiring extensive modifications. The model itself is lightweight, weighing just about .30 lb (0.15 kg), which facilitates easy handling and installation. For maintenance or repairs, it uses a Viton seal kit designated as cartridge number: 990011006. Overall, the Sun Hydraulics CODCXAV check cartridge is an essential component for systems where precise fluid control and backflow prevention are critical, offering robust performance in a compact design.

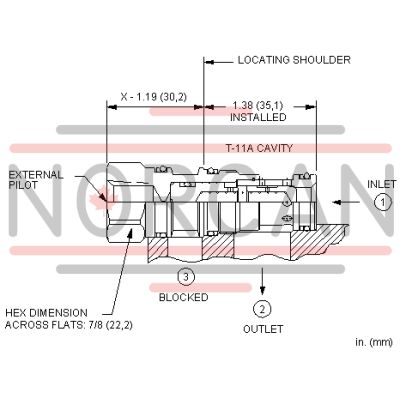

This valve is a spring biased closed, pilot-to-close check cartridge that has a 1.8:1 pilot ratio. The valve allows flow from port 1 to port 2 and blocks reverse flow. Pressure at the external pilot port opposes pressure at port 1 at a ratio of 1.8:1. Port 3 is blocked.
- Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi (70 bar) at the pilot port will close a valve against a pressure of 1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could allow the valve to open, even if it is a momentary decay or loss.
- Pressure at the port 2 area directly opposes pilot pressure.
- Reverse flow through the valve from port 2 to port 1 is not possible under any condition.
- With equal pressures at all ports the valve is closed.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Pilot Ratio | 1.8:11.8:1 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
