SUN HYDRAULICS
CODCXBV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

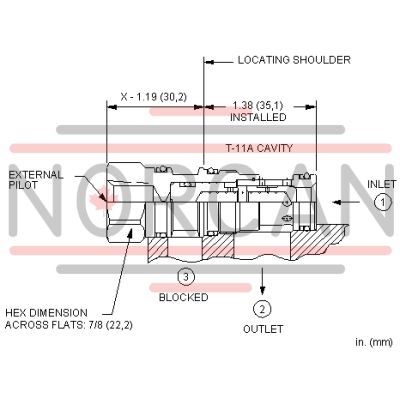

The Sun Hydraulics CODCXBV (CODCXBV) is a spring-biased closed, pilot-to-close check cartridge valve designed for precision hydraulic applications. It features a nominal pilot ratio of 1.8:1, allowing it to close against higher pressures at port 1 when external pilot pressure is applied. Specifically, a pilot pressure of 1000 psi can close the valve against a pressure of 1800 psi at port 1. This valve ensures no reverse flow from port 2 to port 1 under any condition and requires equal pressure at all ports to remain closed. The CODCXBV incorporates Sun\u2019s floating style construction which minimizes internal parts binding that could be caused by excessive installation torque or variations in cavity/cartridge machining. This design enhances the reliability and performance of the valve in demanding environments. The valve operates with a maximum capacity of 20 gpm/80 L/min and can handle a maximum operating pressure up to 5000 psi/350 bar. It is engineered to fit a T11A cavity and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Its compact design results in a lightweight model, weighing just about .30 lb (0.15 kg). This model is particularly suitable for applications where precise hydraulic flow control is necessary and reverse flow must be securely blocked, ensuring operational safety and efficiency in hydraulic systems. The robust construction coupled with meticulous leakage control \u2013 permitting only minimal leakage of less than one drop per minute \u2013 underscores its suitability for high-performance applications where fluid control and system integrity are paramount.
