- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CODCXDV (CODCXDV) is a high-performance, pilot-to-close check cartridge valve designed for hydraulic applications requiring reliable one-way flow control. This valve allows fluid to flow from port 1 to port 2 while blocking reverse flow under any condition, ensuring operational integrity and safety in hydraulic circuits. The valve features a nominal pilot ratio of 1.8:1, which means that a pressure of 1000 psi at the pilot port can close the valve against a pressure of 1800 psi at port 1. It is specifically engineered to remain closed with equal pressures at all ports, enhancing its effectiveness in maintaining system stability. The CODCXDV incorporates Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining, thus ensuring consistent performance and longevity. The valve operates with a maximum flow capacity of 20 gpm (80 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). It has been designed to fit into a T11A cavity and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm), making it versatile for various installation environments. With its robust design and precise control capabilities, the Sun Hydraulics CODCXDV is well-suited for applications where hydraulic flow must be meticulously managed to prevent reverse flow and maintain system efficiency. The maximum leakage specification ensures minimal fluid loss, contributing to both environmental safety and operational cost-efficiency.
The Sun Hydraulics CODCXDV (CODCXDV) is a high-performance, pilot-to-close check cartridge valve designed for hydraulic applications requiring reliable one-way flow control. This valve allows fluid to flow from port 1 to port 2 while blocking reverse flow under any condition, ensuring operational integrity and safety in hydraulic circuits. The valve features a nominal pilot ratio of 1.8:1, which means that a pressure of 1000 psi at the pilot port can close the valve against a pressure of 1800 psi at port 1. It is specifically engineered to remain closed with equal pressures at all ports, enhancing its effectiveness in maintaining system stability. The CODCXDV incorporates Sun's floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining, thus ensuring consistent performance and longevity. The valve operates with a maximum flow capacity of 20 gpm (80 L/min) and can withstand a maximum operating pressure of 5000 psi (350 bar). It has been designed to fit into a T11A cavity and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm), making it versatile for various installation environments. With its robust design and precise control capabilities, the Sun Hydraulics CODCXDV is well-suited for applications where hydraulic flow must be meticulously managed to prevent reverse flow and maintain system efficiency. The maximum leakage specification ensures minimal fluid loss, contributing to both environmental safety and operational cost-efficiency.

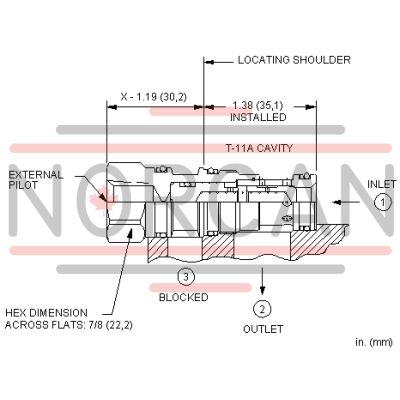

This valve is a spring biased closed, pilot-to-close check cartridge that has a 1.8:1 pilot ratio. The valve allows flow from port 1 to port 2 and blocks reverse flow. Pressure at the external pilot port opposes pressure at port 1 at a ratio of 1.8:1. Port 3 is blocked.
- Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi (70 bar) at the pilot port will close a valve against a pressure of 1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could allow the valve to open, even if it is a momentary decay or loss.
- Pressure at the port 2 area directly opposes pilot pressure.
- Reverse flow through the valve from port 2 to port 1 is not possible under any condition.
- With equal pressures at all ports the valve is closed.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Pilot Ratio | 1.8:11.8:1 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
