SUN HYDRAULICS
CODCXEN
$60.66 USD
- SUN HYDRAULICS
- Material:CODCXEN
- Model:CODC-XEN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CODCXEN (CODCXEN) is a high-performance pilot-to-close check cartridge valve designed for precise hydraulic flow control. This valve features a nominal pilot ratio of 1.8:1, meaning it requires a pilot pressure of 1000 psi to close against a pressure of 1800 psi at port 1. It operates by allowing flow from port 1 to port 2 while blocking reverse flow, ensuring that under no condition can fluid move from port 2 back to port 1. The CODCXEN valve has a maximum operating pressure of 5000 psi and a flow capacity of up to 20 gallons per minute. It is engineered with Sun\u2019s floating style construction which helps prevent internal parts binding, an issue that could arise from excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the reliability and longevity of the valve in demanding applications. Key specifications include a maximum leakage rate at only one drop per minute for stringent performance demands, and it accommodates fluid temperatures with Viton seals provided in the seal kit. The valve's hex size is set at 7/8 inches for installation, with recommended torque between 30-35 lbf ft to ensure secure fitting without damaging the valve. Overall, the Sun Hydraulics CODCXEN is tailored for systems where precise hydraulic control and reliability are critical, supported by robust construction and thoughtful engineering designed to minimize operational issues and maintenance requirements.
The Sun Hydraulics CODCXEN (CODCXEN) is a high-performance pilot-to-close check cartridge valve designed for precise hydraulic flow control. This valve features a nominal pilot ratio of 1.8:1, meaning it requires a pilot pressure of 1000 psi to close against a pressure of 1800 psi at port 1. It operates by allowing flow from port 1 to port 2 while blocking reverse flow, ensuring that under no condition can fluid move from port 2 back to port 1. The CODCXEN valve has a maximum operating pressure of 5000 psi and a flow capacity of up to 20 gallons per minute. It is engineered with Sun\u2019s floating style construction which helps prevent internal parts binding, an issue that could arise from excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the reliability and longevity of the valve in demanding applications. Key specifications include a maximum leakage rate at only one drop per minute for stringent performance demands, and it accommodates fluid temperatures with Viton seals provided in the seal kit. The valve's hex size is set at 7/8 inches for installation, with recommended torque between 30-35 lbf ft to ensure secure fitting without damaging the valve. Overall, the Sun Hydraulics CODCXEN is tailored for systems where precise hydraulic control and reliability are critical, supported by robust construction and thoughtful engineering designed to minimize operational issues and maintenance requirements.

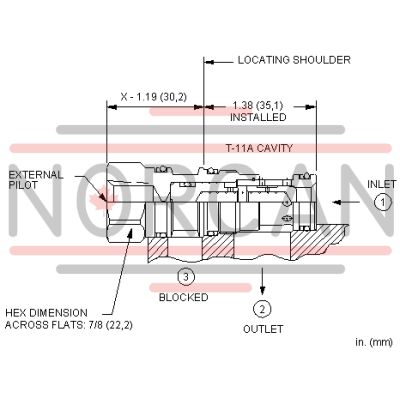

This valve is a spring biased closed, pilot-to-close check cartridge that has a 1.8:1 pilot ratio. The valve allows flow from port 1 to port 2 and blocks reverse flow. Pressure at the external pilot port opposes pressure at port 1 at a ratio of 1.8:1. Port 3 is blocked.
- Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi (70 bar) at the pilot port will close a valve against a pressure of 1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could allow the valve to open, even if it is a momentary decay or loss.
- Pressure at the port 2 area directly opposes pilot pressure.
- Reverse flow through the valve from port 2 to port 1 is not possible under any condition.
- With equal pressures at all ports the valve is closed.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Pilot Ratio | 1.8:11.8:1 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
