SUN HYDRAULICS
CODCXZN
$62.64 USD
- SUN HYDRAULICS
- Material:CODCXZN
- Model:CODC-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CODCXZN (CODCXZN) is a robust pilot-to-close check cartridge valve designed for high-pressure hydraulic applications. Featuring a nominal pilot ratio of 1.8:1, this valve efficiently manages flow between port 1 and port 2 while completely blocking reverse flow from port 2 to port 1, ensuring operational security and system integrity. The valve is specifically engineered to close against pressures as high as 1800 psi (125 bar) when the pressure at the pilot port reaches 1000 psi (70 bar). This capability makes it particularly useful in systems where control over fluid direction and pressure is critical. The CODCXZN incorporates Sun Hydraulics' floating style construction, which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the durability and reliability of the valve under varied operational conditions. The valve is designed for a maximum operating pressure of 5000 psi (350 bar) and has a maximum flow capacity of 20 gpm (80 L/min), making it suitable for a wide range of hydraulic control applications. Additionally, the cartridge\u2019s maximum leakage is finely controlled at about one drop per minute at 110 SUS (24 cSt), demonstrating its efficiency in maintaining system pressures without significant losses. Installation specifications include a hex size of 7/8 in. (22.2 mm) and an installation torque ranging between 30 - 35 lbf ft (41 - 47 Nm), ensuring easy integration into various hydraulic setups without special requirements for tools or handling. Overall, Sun Hydraulics' CODCXZN offers precise control over hydraulic flows with high reliability, making it an essential component for systems requiring stringent flow management under varying pressure conditions.
The Sun Hydraulics CODCXZN (CODCXZN) is a robust pilot-to-close check cartridge valve designed for high-pressure hydraulic applications. Featuring a nominal pilot ratio of 1.8:1, this valve efficiently manages flow between port 1 and port 2 while completely blocking reverse flow from port 2 to port 1, ensuring operational security and system integrity. The valve is specifically engineered to close against pressures as high as 1800 psi (125 bar) when the pressure at the pilot port reaches 1000 psi (70 bar). This capability makes it particularly useful in systems where control over fluid direction and pressure is critical. The CODCXZN incorporates Sun Hydraulics' floating style construction, which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This design feature enhances the durability and reliability of the valve under varied operational conditions. The valve is designed for a maximum operating pressure of 5000 psi (350 bar) and has a maximum flow capacity of 20 gpm (80 L/min), making it suitable for a wide range of hydraulic control applications. Additionally, the cartridge\u2019s maximum leakage is finely controlled at about one drop per minute at 110 SUS (24 cSt), demonstrating its efficiency in maintaining system pressures without significant losses. Installation specifications include a hex size of 7/8 in. (22.2 mm) and an installation torque ranging between 30 - 35 lbf ft (41 - 47 Nm), ensuring easy integration into various hydraulic setups without special requirements for tools or handling. Overall, Sun Hydraulics' CODCXZN offers precise control over hydraulic flows with high reliability, making it an essential component for systems requiring stringent flow management under varying pressure conditions.

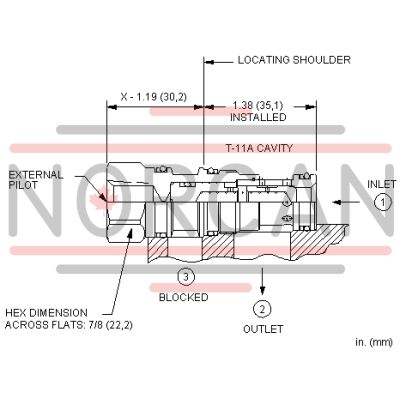

This valve is a spring biased closed, pilot-to-close check cartridge that has a 1.8:1 pilot ratio. The valve allows flow from port 1 to port 2 and blocks reverse flow. Pressure at the external pilot port opposes pressure at port 1 at a ratio of 1.8:1. Port 3 is blocked.
- Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi (70 bar) at the pilot port will close a valve against a pressure of 1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could allow the valve to open, even if it is a momentary decay or loss.
- Pressure at the port 2 area directly opposes pilot pressure.
- Reverse flow through the valve from port 2 to port 1 is not possible under any condition.
- With equal pressures at all ports the valve is closed.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Pilot Ratio | 1.8:11.8:1 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
