CODDXDV
$71.38 USD
- SUN HYDRAULICS
- Material:CODDXDV
- Model:CODD-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CODDXDV (CODDXDV) is a highly specialized hydraulic valve designed for critical check and control applications in hydraulic systems. This spring-biased closed, pilot-to-close check cartridge operates with a 20:1 pilot ratio, allowing fluid flow from port 1 to port 2 while entirely blocking reverse flow from port 2 to port 1 under any condition. It employs a poppet design which ensures very low leakage, making it ideal for maintaining the integrity of fluid stored in an accumulator. With a maximum operating pressure of 5000 psi (350 bar) and a capacity equivalent to a .109 in. (2.8 mm) diameter orifice, the CODDXDV is engineered to handle demanding tasks efficiently. The valve's design incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This valve is also characterized by its minimal leakage at high viscosity, with a maximum of only one drop per minute at 110 SUS (24 cSt). For installation, it requires a hex size of 7/8 in. (22.2 mm) and an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Additionally, it uses Viton seals for enhanced durability and resistance against harsh fluids. The T11A cavity specification and Series 1 classification further define the precise engineering standards met by this Sun Hydraulics model, ensuring compatibility and optimal performance in tailored hydraulic circuits where precise fluid control is paramount.
The Sun Hydraulics CODDXDV (CODDXDV) is a highly specialized hydraulic valve designed for critical check and control applications in hydraulic systems. This spring-biased closed, pilot-to-close check cartridge operates with a 20:1 pilot ratio, allowing fluid flow from port 1 to port 2 while entirely blocking reverse flow from port 2 to port 1 under any condition. It employs a poppet design which ensures very low leakage, making it ideal for maintaining the integrity of fluid stored in an accumulator. With a maximum operating pressure of 5000 psi (350 bar) and a capacity equivalent to a .109 in. (2.8 mm) diameter orifice, the CODDXDV is engineered to handle demanding tasks efficiently. The valve's design incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This valve is also characterized by its minimal leakage at high viscosity, with a maximum of only one drop per minute at 110 SUS (24 cSt). For installation, it requires a hex size of 7/8 in. (22.2 mm) and an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Additionally, it uses Viton seals for enhanced durability and resistance against harsh fluids. The T11A cavity specification and Series 1 classification further define the precise engineering standards met by this Sun Hydraulics model, ensuring compatibility and optimal performance in tailored hydraulic circuits where precise fluid control is paramount.

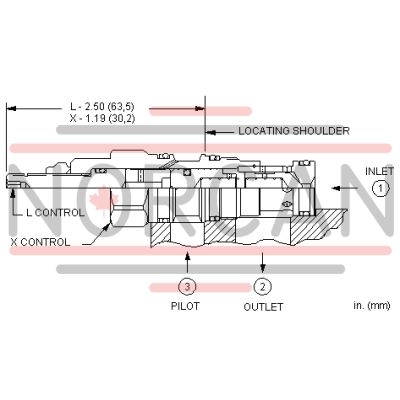

This valve is a spring biased closed, pilot-to-close check cartridge that has a 20:1 pilot ratio. The valve allows flow from port 1 to port 2 and blocks reverse flow. Pressure at the pilot (port 3) opposes pressure at port 1 at a ratio of 20:1.
- Pressure at the port 2 area directly opposes pilot pressure.
- Reverse flow through the valve from port 2 to port 1 is not possible under any condition.
- The valve is a poppet design that results in very low leakage of stored fluid from the accumulator.
- With equal pressures at all ports the valve is closed.
- Capacity is the equivalent of a .109 in. (2,8 mm) diameter orifice.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | .11 in.2,8 mm |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-011-006 |
