SUN HYDRAULICS
CODDXHV
$73.37 USD
- SUN HYDRAULICS
- Material:CODDXHV
- Model:CODD-XHV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CODDXHV (CODDXHV) is a high-performance, pilot-to-close check cartridge valve designed for advanced hydraulic systems requiring reliable non-return functionality. The valve ensures unidirectional flow from port 1 to port 2 while completely blocking reverse flow from port 2 to port 1 under any conditions, making it ideal for applications where backflow prevention is critical. This model features a poppet design that significantly minimizes leakage, preserving the integrity and efficiency of the hydraulic system. The CODDXHV operates with a pilot ratio of 20:1, where pressure at the pilot port (port 3) effectively opposes the pressure at port 1, allowing for precise control over the opening of the valve. This feature is particularly beneficial in systems where pressure fluctuation control is necessary for proper functionality and safety. The valve's capacity equates to a .109 inch (approximately 2.8 mm) diameter orifice, providing adequate flow for various industrial applications. Constructed with Sun\u2019s floating style design, the CODDXHV minimizes potential internal part binding which could result from excessive installation torque or variations in cavity/cartridge machining. With a maximum operating pressure of 5000 psi (350 bar) and very low allowable leakage of only one drop per minute at 110 SUS (24 cSt), this valve maintains robust performance even under high-pressure scenarios. It requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm) and uses Viton seals for enhanced durability and chemical resistance. Overall, the Sun Hydraulics CODDXHV is engineered to offer reliable performance in hydraulic systems where control and prevention of reverse flow are paramount, all while maintaining system integrity through its innovative design features.
The Sun Hydraulics CODDXHV (CODDXHV) is a high-performance, pilot-to-close check cartridge valve designed for advanced hydraulic systems requiring reliable non-return functionality. The valve ensures unidirectional flow from port 1 to port 2 while completely blocking reverse flow from port 2 to port 1 under any conditions, making it ideal for applications where backflow prevention is critical. This model features a poppet design that significantly minimizes leakage, preserving the integrity and efficiency of the hydraulic system. The CODDXHV operates with a pilot ratio of 20:1, where pressure at the pilot port (port 3) effectively opposes the pressure at port 1, allowing for precise control over the opening of the valve. This feature is particularly beneficial in systems where pressure fluctuation control is necessary for proper functionality and safety. The valve's capacity equates to a .109 inch (approximately 2.8 mm) diameter orifice, providing adequate flow for various industrial applications. Constructed with Sun\u2019s floating style design, the CODDXHV minimizes potential internal part binding which could result from excessive installation torque or variations in cavity/cartridge machining. With a maximum operating pressure of 5000 psi (350 bar) and very low allowable leakage of only one drop per minute at 110 SUS (24 cSt), this valve maintains robust performance even under high-pressure scenarios. It requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm) and uses Viton seals for enhanced durability and chemical resistance. Overall, the Sun Hydraulics CODDXHV is engineered to offer reliable performance in hydraulic systems where control and prevention of reverse flow are paramount, all while maintaining system integrity through its innovative design features.
This valve is a spring biased closed, pilot-to-close check cartridge that has a 20:1 pilot ratio. The valve allows flow from port 1 to port 2 and blocks reverse flow. Pressure at the pilot (port 3) opposes pressure at port 1 at a ratio of 20:1.
- Pressure at the port 2 area directly opposes pilot pressure.
- Reverse flow through the valve from port 2 to port 1 is not possible under any condition.
- The valve is a poppet design that results in very low leakage of stored fluid from the accumulator.
- With equal pressures at all ports the valve is closed.
- Capacity is the equivalent of a .109 in. (2,8 mm) diameter orifice.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

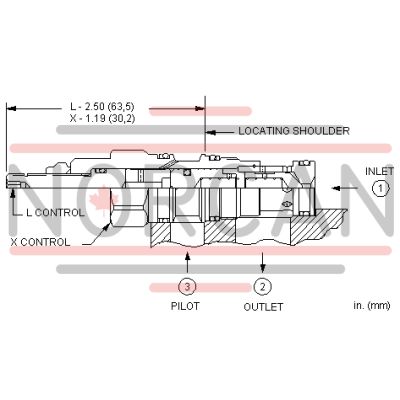

| Cavity | T-11A |
| Series | 1 |
| Capacity | .11 in.2,8 mm |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-011-006 |
