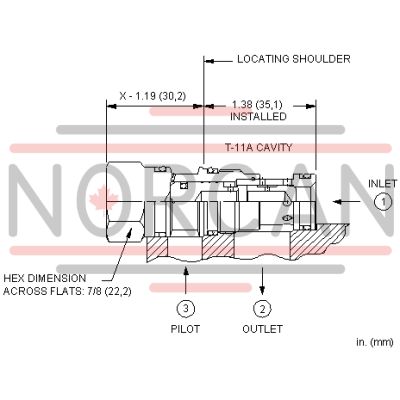

The Sun Hydraulics CODLXAV (CODLXAV) is designed for advanced hydraulic control with a nominal pilot ratio of 1.8:1, ensuring that a pressure of 1000 psi at the pilot port can close a valve against a pressure of 1800 psi at port 1. This model is particularly effective in applications where precise pressure control is crucial, as any decay in pilot pressure might momentarily open the valve. The valve's design prevents reverse flow from port 2 to port 1 under any conditions and maintains closure with equal pressures at all ports. Constructed with Sun's floating style, the CODLXAV minimizes internal part binding due to excessive installation torque or cavity/cartridge machining variations, enhancing reliability and performance longevity. It fits within a T11A cavity and belongs to series 1, offering a maximum flow capacity of 20 gpm (80 L/min) and can withstand a maximum operating pressure of up to 5000 psi (350 bar). The valve exhibits minimal leakage, limited to approximately one drop per minute at 110 SUS (24 cSt), ensuring efficient operation. Key physical specifications include a hex size of 7/8 inch (22.2 mm) with an installation torque requirement between 30-35 lbf\u00b7ft (41-47 Nm). The model weighs about .30 lb (0.15 kg), making it lightweight yet robust for various hydraulic applications. The recommended seal kit for this cartridge uses Viton components, part number 990011006, ensuring optimal compatibility and performance under varying operational conditions. This product exemplifies Sun Hydraulics' commitment to high-quality engineering and functionality in demanding hydraulic systems.
