SUN HYDRAULICS
CODLXBN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

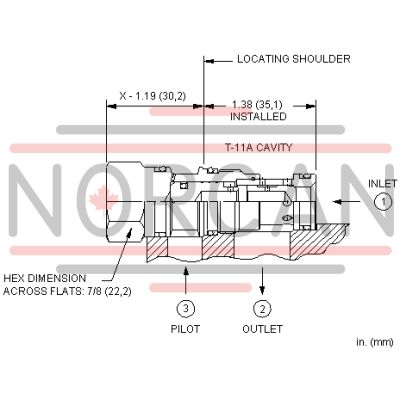

The Sun Hydraulics CODLXBN (CODLXBN) is engineered with precision and robust functionality for hydraulic systems requiring reliable pressure control. This model, an upgrade from the CODA series, features no physical differences from the CODL and maintains a nominal pilot ratio of 1.8:1. This ratio indicates that a pilot port pressure of 1000 psi can close a valve against a pressure of 1800 psi at port 1. The model is designed to prevent reverse flow from port 2 to port 1 under any condition, ensuring directional integrity in hydraulic circuits. The CODLXBN is built with Sun's floating style construction which minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design enhances the durability and reliability of the valve in demanding operational conditions. The valve operates at a maximum capacity of 20 gpm/80 L/min and can withstand a maximum operating pressure of 5000 psi/350 bar. It also features tight control on leakage, allowing only about one drop per minute at a fluid viscosity of 110 SUS (24 cSt). For installation, the valve requires a hex size of 7/8 in./22.2 mm and an installation torque between 30-35 lbf ft/41-47 Nm. Weighing just .30 lb/0,15 kg, it is compact yet sturdy enough for rigorous applications. The model uses a Viton seal kit/cartridge for enhanced sealing performance under various conditions. Overall, the Sun Hydraulics CODLXBN offers superior performance for hydraulic systems where precise pressure control and reliability are critical, backed by robust construction and innovative design features.
