CODLXCN
$67.01 USD
- SUN HYDRAULICS
- Material:CODLXCN
- Model:CODL-XCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CODLXCN (CODLXCN) is a high-performance hydraulic valve designed for robust fluid control in various hydraulic systems. The model features a nominal pilot ratio of 1.8:1, allowing it to close against pressures up to 1800 psi (125 bar) at port 1 when the pilot port pressure is 1000 psi (70 bar). This valve is specifically engineered to prevent any reverse flow from port 2 to port 1, ensuring reliable and consistent operation under all conditions. Sun Hydraulics has incorporated their floating style construction into the CODLXCN model, which significantly reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. The valve operates effectively with a maximum flow capacity of 20 gpm (80 L/min) and can withstand maximum operating pressures up to 5000 psi (350 bar). It also features minimal leakage, with a maximum rate of one drop per minute at fluid viscosity of 110 SUS (24 cSt). Designed for T11A cavity installations, this model ensures easy integration into existing systems with minimal adjustments required. The installation torque for this valve ranges between 30-35 lbf ft (41-47 Nm), and it has a compact model weight of .30 lb (0.15 kg). The use of Viton seals in the cartridge enhances its durability and performance under various operational conditions. This makes the CODLXCN an ideal choice for applications requiring precise hydraulic flow control and high reliability in industrial settings.
The Sun Hydraulics CODLXCN (CODLXCN) is a high-performance hydraulic valve designed for robust fluid control in various hydraulic systems. The model features a nominal pilot ratio of 1.8:1, allowing it to close against pressures up to 1800 psi (125 bar) at port 1 when the pilot port pressure is 1000 psi (70 bar). This valve is specifically engineered to prevent any reverse flow from port 2 to port 1, ensuring reliable and consistent operation under all conditions. Sun Hydraulics has incorporated their floating style construction into the CODLXCN model, which significantly reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. The valve operates effectively with a maximum flow capacity of 20 gpm (80 L/min) and can withstand maximum operating pressures up to 5000 psi (350 bar). It also features minimal leakage, with a maximum rate of one drop per minute at fluid viscosity of 110 SUS (24 cSt). Designed for T11A cavity installations, this model ensures easy integration into existing systems with minimal adjustments required. The installation torque for this valve ranges between 30-35 lbf ft (41-47 Nm), and it has a compact model weight of .30 lb (0.15 kg). The use of Viton seals in the cartridge enhances its durability and performance under various operational conditions. This makes the CODLXCN an ideal choice for applications requiring precise hydraulic flow control and high reliability in industrial settings.
The CODA has been upgraded so that there is no physical difference from the CODL.
- Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi (70 bar) at the pilot port will close a valve against a pressure of 1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could allow the valve to open, even if it is a momentary decay or loss.
- Pressure at the port 2 area directly opposes pilot pressure.
- Reverse flow through the valve from port 2 to port 1 is not possible under any condition.
- With equal pressures at all ports the valve is closed.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

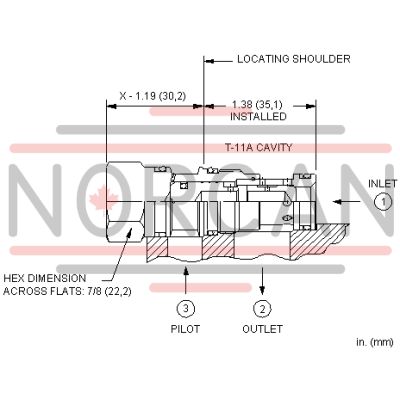

| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Pilot Ratio | 1.8:11.8:1 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
