SUN HYDRAULICS
CODLXDN
$69.00 USD
- SUN HYDRAULICS
- Material:CODLXDN
- Model:CODL-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CODLXDN (CODLXDN) is a high-performance hydraulic valve designed for precise flow control in various hydraulic systems. This model incorporates the updated features of the CODA series, ensuring no physical distinction from the CODL models, but with enhanced functionalities. The valve operates with a nominal pilot ratio of 1.8:1, meaning it can effectively close against significantly higher pressures at port 1 when controlled pressure is applied at the pilot port. The CODLXDN boasts a maximum operating pressure capacity of 5000 psi (350 bar) and can handle flow rates up to 20 gpm (80 L/min). It is engineered with a T11A cavity and adheres to the Series 1 specifications. Notably, reverse flow from port 2 to port 1 is blocked under all conditions, enhancing its application in systems where such reverse flow must be prevented. This model also features Sun Hydraulics' floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This design detail ensures reliable performance and longevity of the valve even under strenuous conditions. With its compact model weight of just .30 lb (0.15 kg), and dimensions that require a valve hex size of 7/8 in. (22.2 mm) for installation with a torque specification between 30-35 lbf ft (41-47 Nm), the CODLXDN is both lightweight and easy to install. Its maximum valve leakage is remarkably low at approximately one drop per minute (0.07 cc/min.), using Viton seals for enhanced durability against fluid and environmental challenges. This specific model from Sun Hydraulics represents an optimal solution for applications requiring robust control and reliability in hydraulic fluid management, ensuring operational precision without susceptibility to pressure variations or mechanical misalignments.
The Sun Hydraulics CODLXDN (CODLXDN) is a high-performance hydraulic valve designed for precise flow control in various hydraulic systems. This model incorporates the updated features of the CODA series, ensuring no physical distinction from the CODL models, but with enhanced functionalities. The valve operates with a nominal pilot ratio of 1.8:1, meaning it can effectively close against significantly higher pressures at port 1 when controlled pressure is applied at the pilot port. The CODLXDN boasts a maximum operating pressure capacity of 5000 psi (350 bar) and can handle flow rates up to 20 gpm (80 L/min). It is engineered with a T11A cavity and adheres to the Series 1 specifications. Notably, reverse flow from port 2 to port 1 is blocked under all conditions, enhancing its application in systems where such reverse flow must be prevented. This model also features Sun Hydraulics' floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This design detail ensures reliable performance and longevity of the valve even under strenuous conditions. With its compact model weight of just .30 lb (0.15 kg), and dimensions that require a valve hex size of 7/8 in. (22.2 mm) for installation with a torque specification between 30-35 lbf ft (41-47 Nm), the CODLXDN is both lightweight and easy to install. Its maximum valve leakage is remarkably low at approximately one drop per minute (0.07 cc/min.), using Viton seals for enhanced durability against fluid and environmental challenges. This specific model from Sun Hydraulics represents an optimal solution for applications requiring robust control and reliability in hydraulic fluid management, ensuring operational precision without susceptibility to pressure variations or mechanical misalignments.
The CODA has been upgraded so that there is no physical difference from the CODL.
- Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi (70 bar) at the pilot port will close a valve against a pressure of 1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could allow the valve to open, even if it is a momentary decay or loss.
- Pressure at the port 2 area directly opposes pilot pressure.
- Reverse flow through the valve from port 2 to port 1 is not possible under any condition.
- With equal pressures at all ports the valve is closed.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

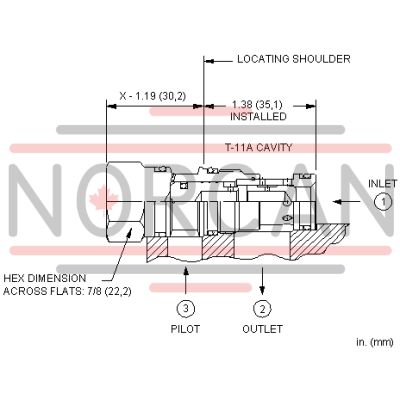

| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Pilot Ratio | 1.8:11.8:1 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
