SUN HYDRAULICS
CODLXEN
$67.01 USD
- SUN HYDRAULICS
- Material:CODLXEN
- Model:CODL-XEN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CODLXEN (CODLXEN) is a high-performance hydraulic valve designed for precise fluid control in various applications. This model, featuring the T11A cavity and Series 1 specifications, offers a maximum capacity of 20 gpm (80 L/min) and can handle a maximum operating pressure of 5000 psi (350 bar). The valve's nominal pilot ratio is set at 1.8:1, enabling it to close against significantly higher pressures at port 1 when the pilot port is activated with the required pressure. It ensures that reverse flow from port 2 to port 1 is blocked under all conditions. The CODLXEN includes Sun Hydraulics' floating style construction which minimizes the risk of internal parts binding, a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This construction enhances the reliability and longevity of the valve in demanding operational environments. The valve also features a specific installation torque range of 30-35 lbf ft (41-47 Nm) and has a compact model weight of .30 lb (0.15 kg). This model is equipped with Viton seals, ensuring robust performance and compatibility with a wide range of fluids and temperatures. The maximum valve leakage is remarkably low at approximately one drop per minute (0.07 cc/min), demonstrating its efficiency in maintaining system integrity and reducing fluid loss. Overall, the Sun Hydraulics CODLXEN valve stands out for its advanced engineering, ensuring optimal performance in hydraulic systems where precise flow control and pressure management are critical.
The Sun Hydraulics CODLXEN (CODLXEN) is a high-performance hydraulic valve designed for precise fluid control in various applications. This model, featuring the T11A cavity and Series 1 specifications, offers a maximum capacity of 20 gpm (80 L/min) and can handle a maximum operating pressure of 5000 psi (350 bar). The valve's nominal pilot ratio is set at 1.8:1, enabling it to close against significantly higher pressures at port 1 when the pilot port is activated with the required pressure. It ensures that reverse flow from port 2 to port 1 is blocked under all conditions. The CODLXEN includes Sun Hydraulics' floating style construction which minimizes the risk of internal parts binding, a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This construction enhances the reliability and longevity of the valve in demanding operational environments. The valve also features a specific installation torque range of 30-35 lbf ft (41-47 Nm) and has a compact model weight of .30 lb (0.15 kg). This model is equipped with Viton seals, ensuring robust performance and compatibility with a wide range of fluids and temperatures. The maximum valve leakage is remarkably low at approximately one drop per minute (0.07 cc/min), demonstrating its efficiency in maintaining system integrity and reducing fluid loss. Overall, the Sun Hydraulics CODLXEN valve stands out for its advanced engineering, ensuring optimal performance in hydraulic systems where precise flow control and pressure management are critical.
The CODA has been upgraded so that there is no physical difference from the CODL.
- Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi (70 bar) at the pilot port will close a valve against a pressure of 1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could allow the valve to open, even if it is a momentary decay or loss.
- Pressure at the port 2 area directly opposes pilot pressure.
- Reverse flow through the valve from port 2 to port 1 is not possible under any condition.
- With equal pressures at all ports the valve is closed.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

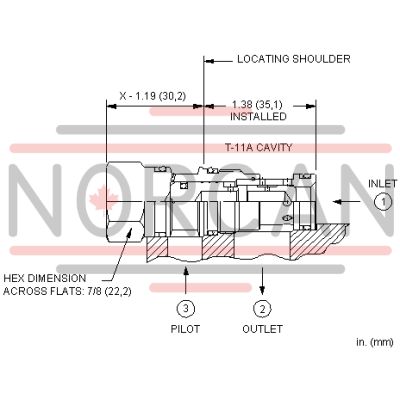

| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Pilot Ratio | 1.8:11.8:1 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
