SUN HYDRAULICS
CODLXFN
$69.00 USD
- SUN HYDRAULICS
- Material:CODLXFN
- Model:CODL-XFN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CODLXFN (CODLXFN) is a high-performance hydraulic valve designed for precision control in fluid power applications. This model, built with a nominal pilot ratio of 1.8:1, allows for effective operation under high-pressure conditions, supporting pressures up to 5000 psi (350 bar). The valve is engineered to close securely with pilot pressures of 1000 psi (70 bar), effectively handling back pressures up to 1800 psi (125 bar) at port 1. One of the key features of the CODLXFN is its inability to allow reverse flow from port 2 to port 1, ensuring directional integrity and system reliability. Constructed using Sun\u2019s floating style design, the CODLXFN minimizes potential internal binding that can result from excessive installation torque or variations in cavity/cartridge machining. This design enhances the valve's operational longevity and reliability. The model also boasts a maximum flow capacity of 20 gpm (80 L/min), making it suitable for a variety of demanding applications. For installation, the valve requires a hex size of 7/8 in. (22.2 mm) and an installation torque between 30 - 35 lbf ft (41 - 47 Nm), ensuring secure and straightforward integration into hydraulic systems. Additionally, it features minimal leakage rates at approximately one drop per minute at 110 SUS (24 cSt), emphasizing its efficiency and performance stability. This particular model weighs about .30 lb (0.15 kg) and fits in a T11A cavity within Series 1 configurations, providing versatility across different setups. The CODLXFN uses Viton seals for enhanced temperature and chemical resistance, further establishing its utility in diverse operating environments where hydraulic precision and durability are paramount.
The Sun Hydraulics CODLXFN (CODLXFN) is a high-performance hydraulic valve designed for precision control in fluid power applications. This model, built with a nominal pilot ratio of 1.8:1, allows for effective operation under high-pressure conditions, supporting pressures up to 5000 psi (350 bar). The valve is engineered to close securely with pilot pressures of 1000 psi (70 bar), effectively handling back pressures up to 1800 psi (125 bar) at port 1. One of the key features of the CODLXFN is its inability to allow reverse flow from port 2 to port 1, ensuring directional integrity and system reliability. Constructed using Sun\u2019s floating style design, the CODLXFN minimizes potential internal binding that can result from excessive installation torque or variations in cavity/cartridge machining. This design enhances the valve's operational longevity and reliability. The model also boasts a maximum flow capacity of 20 gpm (80 L/min), making it suitable for a variety of demanding applications. For installation, the valve requires a hex size of 7/8 in. (22.2 mm) and an installation torque between 30 - 35 lbf ft (41 - 47 Nm), ensuring secure and straightforward integration into hydraulic systems. Additionally, it features minimal leakage rates at approximately one drop per minute at 110 SUS (24 cSt), emphasizing its efficiency and performance stability. This particular model weighs about .30 lb (0.15 kg) and fits in a T11A cavity within Series 1 configurations, providing versatility across different setups. The CODLXFN uses Viton seals for enhanced temperature and chemical resistance, further establishing its utility in diverse operating environments where hydraulic precision and durability are paramount.
The CODA has been upgraded so that there is no physical difference from the CODL.
- Nominal pilot ratio is 1.8:1. This means that a pressure of 1000 psi (70 bar) at the pilot port will close a valve against a pressure of 1800 psi (125 bar) at port 1. Any decay or loss of pilot pressure could allow the valve to open, even if it is a momentary decay or loss.
- Pressure at the port 2 area directly opposes pilot pressure.
- Reverse flow through the valve from port 2 to port 1 is not possible under any condition.
- With equal pressures at all ports the valve is closed.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 20 gpm80 L/min. |
| Pilot Ratio | 1.8:11.8:1 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |

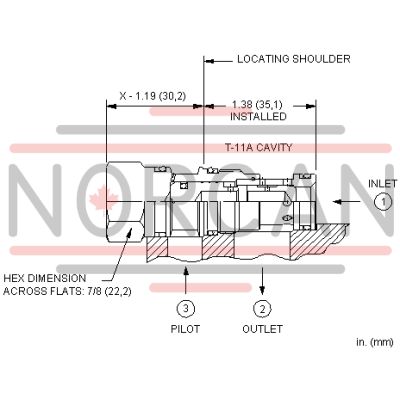

| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .30 lb0,15 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
