SUN HYDRAULICS
CSAABXN
$37.03 USD
- SUN HYDRAULICS
- Material:CSAABXN
- Model:CSAA-BXN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSAABXN (CSAABXN) is a precision-engineered shuttle valve designed for hydraulic systems requiring reliable switching between two pressure sources. This model is particularly noted for its single ball shuttle mechanism that connects the higher of two work ports to a signal or common port, with the signal being sensed at an external port located in the hex end of the cartridge. The CSAABXN is built to handle a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of 2.5 gpm (10 L/min), making it suitable for various high-pressure applications. The shuttle valve features hardened steel balls and seats, enhancing its wear characteristics and tolerance to contamination. This design ensures long-lasting performance even under harsh operating conditions. The incorporation of Sun's floating style construction minimizes potential internal parts binding, which could result from excessive installation torque or variations in cavity/cartridge machining. Designed for ease of installation, the CSAABXN has a valve hex size of 7/8 in. (22.2 mm) and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Its compact model weight is .20 lb (0.10 kg), making it lightweight yet robust enough for demanding applications. Additionally, the valve's maximum leakage at 110 SUS (24 cSt) is limited to 5 drops/min (0.3 cc/min), ensuring efficient operation with minimal fluid loss. This shuttle valve uses Viton seals (part number: 990010006), known for their excellent resistance to high temperatures and chemicals, providing an additional layer of reliability and performance assurance in various industrial hydraulic systems.
The Sun Hydraulics CSAABXN (CSAABXN) is a precision-engineered shuttle valve designed for hydraulic systems requiring reliable switching between two pressure sources. This model is particularly noted for its single ball shuttle mechanism that connects the higher of two work ports to a signal or common port, with the signal being sensed at an external port located in the hex end of the cartridge. The CSAABXN is built to handle a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of 2.5 gpm (10 L/min), making it suitable for various high-pressure applications. The shuttle valve features hardened steel balls and seats, enhancing its wear characteristics and tolerance to contamination. This design ensures long-lasting performance even under harsh operating conditions. The incorporation of Sun's floating style construction minimizes potential internal parts binding, which could result from excessive installation torque or variations in cavity/cartridge machining. Designed for ease of installation, the CSAABXN has a valve hex size of 7/8 in. (22.2 mm) and requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm). Its compact model weight is .20 lb (0.10 kg), making it lightweight yet robust enough for demanding applications. Additionally, the valve's maximum leakage at 110 SUS (24 cSt) is limited to 5 drops/min (0.3 cc/min), ensuring efficient operation with minimal fluid loss. This shuttle valve uses Viton seals (part number: 990010006), known for their excellent resistance to high temperatures and chemicals, providing an additional layer of reliability and performance assurance in various industrial hydraulic systems.

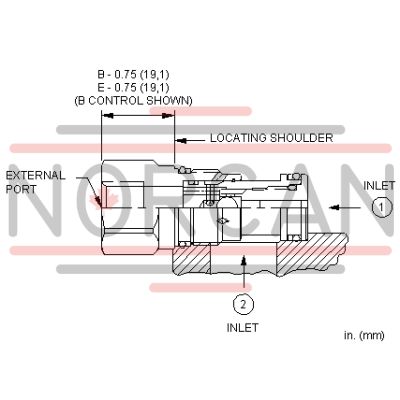

The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at an external port located in the hex-end of the cartridge.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 2.5 gpm10 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
