SUN HYDRAULICS
CSABBXV
$42.10 USD
- SUN HYDRAULICS
- Material:CSABBXV
- Model:CSAB-BXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSABBXV (CSABBXV) is a high-performance shuttle valve designed for hydraulic systems requiring reliable signal sensing and pressure management. This model is particularly adept at connecting the higher of two work ports to a signal or common port, with the sensing occurring at port 3. The valve features a single ball shuttle mechanism that allows for decay of the pressure signal when both load ports experience a drop in pressure, ensuring stable system performance. Constructed with hardened steel balls and seats, the CSABBXV offers exceptional wear characteristics and tolerance to contamination, making it suitable for harsh operating environments. The valve is capable of handling a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of 2.5 gpm (10 L/min), supporting efficient fluid dynamics in medium to high-pressure applications. For systems utilizing phosphate ester fluids, cartridges configured with EPDM seals are available; however, these should not be exposed to petroleum-based fluids as it can damage the seals. Additionally, Sun Hydraulics has incorporated their proprietary floating style construction into this model which helps minimize internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. This model also features very specific installation requirements with a valve hex size of 7/8 in (22.2 mm) and an installation torque range of 30 \u2013 35 lbf ft (41 \u2013 47 Nm). Weighing only 0.20 lb (0.10 kg), it is lightweight yet robust enough to meet rigorous industrial demands without compromising on reliability or efficiency.
The Sun Hydraulics CSABBXV (CSABBXV) is a high-performance shuttle valve designed for hydraulic systems requiring reliable signal sensing and pressure management. This model is particularly adept at connecting the higher of two work ports to a signal or common port, with the sensing occurring at port 3. The valve features a single ball shuttle mechanism that allows for decay of the pressure signal when both load ports experience a drop in pressure, ensuring stable system performance. Constructed with hardened steel balls and seats, the CSABBXV offers exceptional wear characteristics and tolerance to contamination, making it suitable for harsh operating environments. The valve is capable of handling a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of 2.5 gpm (10 L/min), supporting efficient fluid dynamics in medium to high-pressure applications. For systems utilizing phosphate ester fluids, cartridges configured with EPDM seals are available; however, these should not be exposed to petroleum-based fluids as it can damage the seals. Additionally, Sun Hydraulics has incorporated their proprietary floating style construction into this model which helps minimize internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining. This model also features very specific installation requirements with a valve hex size of 7/8 in (22.2 mm) and an installation torque range of 30 \u2013 35 lbf ft (41 \u2013 47 Nm). Weighing only 0.20 lb (0.10 kg), it is lightweight yet robust enough to meet rigorous industrial demands without compromising on reliability or efficiency.

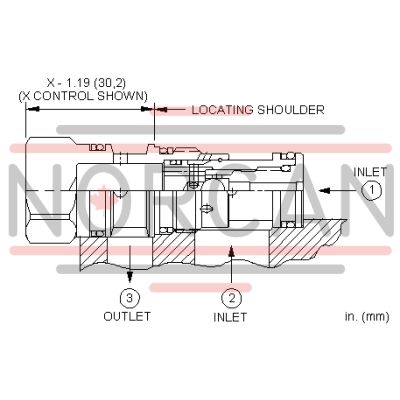

The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 3.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 2.5 gpm10 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
