SUN HYDRAULICS
CSABEXN
$34.16 USD
- SUN HYDRAULICS
- Material:CSABEXN
- Model:CSAB-EXN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSABEXN (CSABEXN) is a precision-engineered shuttle valve designed for hydraulic systems requiring reliable alternate flow paths. This model, part of the T11A cavity series with a 1 Series classification, is adept at connecting the higher of two work ports to a signal or common port, with pressure sensing primarily at port 3. Its design includes a single ball shuttle mechanism that allows for the decay of the pressure signal when both load ports experience a drop in pressure. This feature is critical in applications where maintaining control over fluid direction and flow rate is necessary. The CSABEXN boasts robust construction with hardened steel balls and seats that enhance wear characteristics and provide high tolerance against contamination. It has a maximum operating pressure capacity of 5000 psi (350 bar) and can handle flow rates up to 2.5 gpm (10 L/min). The valve exhibits minimal leakage, capped at 5 drops per minute or 0.3 cc/min, even under high-pressure conditions. Equipped with EPDM seals, the CSABEXN is suitable for use with phosphate ester fluids; however, it should not be exposed to petroleum-based fluids, greases, or lubricants as these can damage the seals. Additionally, this model incorporates Sun's floating style construction which minimizes potential internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. These features collectively ensure reliable performance and longevity in demanding hydraulic applications. With an installation torque requirement between 30 - 35 lbf\u00b7ft (41 - 47 Nm) and a compact weight of just .20 lb (0.10 kg), this valve is both easy to install and maintain, making it an ideal choice for sophisticated fluid power systems where space and weight are considerations.
The Sun Hydraulics CSABEXN (CSABEXN) is a precision-engineered shuttle valve designed for hydraulic systems requiring reliable alternate flow paths. This model, part of the T11A cavity series with a 1 Series classification, is adept at connecting the higher of two work ports to a signal or common port, with pressure sensing primarily at port 3. Its design includes a single ball shuttle mechanism that allows for the decay of the pressure signal when both load ports experience a drop in pressure. This feature is critical in applications where maintaining control over fluid direction and flow rate is necessary. The CSABEXN boasts robust construction with hardened steel balls and seats that enhance wear characteristics and provide high tolerance against contamination. It has a maximum operating pressure capacity of 5000 psi (350 bar) and can handle flow rates up to 2.5 gpm (10 L/min). The valve exhibits minimal leakage, capped at 5 drops per minute or 0.3 cc/min, even under high-pressure conditions. Equipped with EPDM seals, the CSABEXN is suitable for use with phosphate ester fluids; however, it should not be exposed to petroleum-based fluids, greases, or lubricants as these can damage the seals. Additionally, this model incorporates Sun's floating style construction which minimizes potential internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. These features collectively ensure reliable performance and longevity in demanding hydraulic applications. With an installation torque requirement between 30 - 35 lbf\u00b7ft (41 - 47 Nm) and a compact weight of just .20 lb (0.10 kg), this valve is both easy to install and maintain, making it an ideal choice for sophisticated fluid power systems where space and weight are considerations.

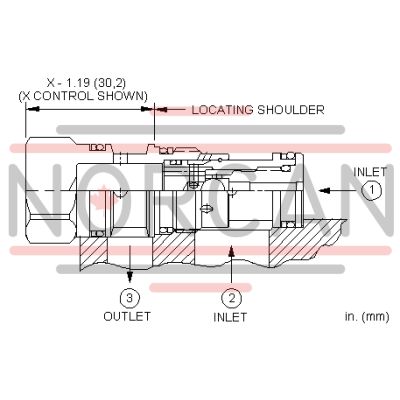

The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 3.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 2.5 gpm10 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
