SUN HYDRAULICS
CSABEXV
$42.10 USD
- SUN HYDRAULICS
- Material:CSABEXV
- Model:CSAB-EXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSABEXV (CSABEXV) is a high-performance shuttle valve designed for hydraulic systems requiring reliable pressure signal management between two work ports and a common or signal port. The valve features a single ball shuttle mechanism that effectively connects the higher of two pressures to the output, ensuring optimal system performance. This mechanism also allows pressure decay when both load ports experience reduced pressure, enhancing system stability and response. Constructed with hardened steel balls and seats, the CSABEXV offers exceptional wear characteristics and is tolerant to contamination, which prolongs its service life even in demanding environments. The shuttle cartridge's design incorporates Sun Hydraulics' floating style construction, which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This model is specifically configured with EPDM seals suitable for use with phosphate ester fluids; however, it is crucial to avoid exposure to petroleum-based fluids, greases, and lubricants as they can damage the seals. The CSABEXV operates efficiently up to a maximum capacity of 2.5 gpm (10 L/min) and can withstand pressures up to 5000 psi (350 bar). Despite its robust capabilities, the valve maintains a compact form factor weighing just 0.20 lb (0.10 kg) and requires an installation torque of 30-35 lbf ft (41-47 Nm), making it easy to integrate into various hydraulic setups without significant adjustments.
The Sun Hydraulics CSABEXV (CSABEXV) is a high-performance shuttle valve designed for hydraulic systems requiring reliable pressure signal management between two work ports and a common or signal port. The valve features a single ball shuttle mechanism that effectively connects the higher of two pressures to the output, ensuring optimal system performance. This mechanism also allows pressure decay when both load ports experience reduced pressure, enhancing system stability and response. Constructed with hardened steel balls and seats, the CSABEXV offers exceptional wear characteristics and is tolerant to contamination, which prolongs its service life even in demanding environments. The shuttle cartridge's design incorporates Sun Hydraulics' floating style construction, which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This model is specifically configured with EPDM seals suitable for use with phosphate ester fluids; however, it is crucial to avoid exposure to petroleum-based fluids, greases, and lubricants as they can damage the seals. The CSABEXV operates efficiently up to a maximum capacity of 2.5 gpm (10 L/min) and can withstand pressures up to 5000 psi (350 bar). Despite its robust capabilities, the valve maintains a compact form factor weighing just 0.20 lb (0.10 kg) and requires an installation torque of 30-35 lbf ft (41-47 Nm), making it easy to integrate into various hydraulic setups without significant adjustments.

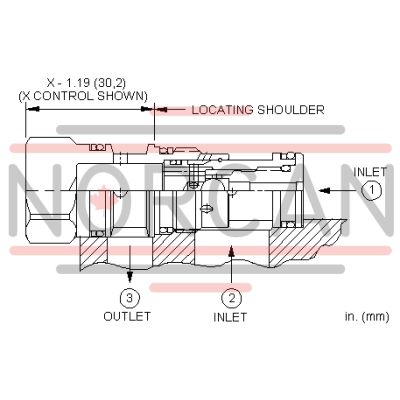

The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 3.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 2.5 gpm10 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
