SUN HYDRAULICS
CSACBXN
$37.03 USD
- SUN HYDRAULICS
- Material:CSACBXN
- Model:CSAC-BXN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSACBXN (CSACBXN) is a meticulously engineered single ball shuttle valve designed for hydraulic applications where it is necessary to connect the higher of two work ports to a signal or common port. This valve features an external load port strategically located in the hex end of the cartridge, with the signal being sensed at port 2, enhancing its functional adaptability in various system configurations. Constructed with hardened steel balls and seats, the CSACBXN offers exceptional wear characteristics and tolerance to contamination, ensuring long-term reliability and performance under challenging conditions. The valve's design also incorporates Sun's floating style construction which minimizes potential internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining, thus safeguarding operational integrity. With a capacity of 2.5 gpm (10 L/min) and capable of handling maximum operating pressures up to 5000 psi (350 bar), this model is well-suited for high-pressure applications. It ensures minimal leakage, defined at a maximum rate of 5 drops/min (0.3 cc/min), thereby maintaining system efficiency. The CSACBXN requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm) and has a modest weight of .20 lbs (0.10 kg), which facilitates easy handling and installation. Key specifications such as a valve hex size of 7/8 in. (22.2 mm) further detail its physical attributes, making it compatible with standard fittings used in hydraulic systems. The model also supports Viton seals (990010006), known for their high temperature and chemical resistance, thereby broadening its application across various environmental conditions without compromising seal integrity. This shuttle valve by Sun Hydraulics is an essential component for systems requiring reliable pressure management and fluid control.
The Sun Hydraulics CSACBXN (CSACBXN) is a meticulously engineered single ball shuttle valve designed for hydraulic applications where it is necessary to connect the higher of two work ports to a signal or common port. This valve features an external load port strategically located in the hex end of the cartridge, with the signal being sensed at port 2, enhancing its functional adaptability in various system configurations. Constructed with hardened steel balls and seats, the CSACBXN offers exceptional wear characteristics and tolerance to contamination, ensuring long-term reliability and performance under challenging conditions. The valve's design also incorporates Sun's floating style construction which minimizes potential internal parts binding that could arise from excessive installation torque or variations in cavity/cartridge machining, thus safeguarding operational integrity. With a capacity of 2.5 gpm (10 L/min) and capable of handling maximum operating pressures up to 5000 psi (350 bar), this model is well-suited for high-pressure applications. It ensures minimal leakage, defined at a maximum rate of 5 drops/min (0.3 cc/min), thereby maintaining system efficiency. The CSACBXN requires an installation torque between 30 - 35 lbf ft (41 - 47 Nm) and has a modest weight of .20 lbs (0.10 kg), which facilitates easy handling and installation. Key specifications such as a valve hex size of 7/8 in. (22.2 mm) further detail its physical attributes, making it compatible with standard fittings used in hydraulic systems. The model also supports Viton seals (990010006), known for their high temperature and chemical resistance, thereby broadening its application across various environmental conditions without compromising seal integrity. This shuttle valve by Sun Hydraulics is an essential component for systems requiring reliable pressure management and fluid control.

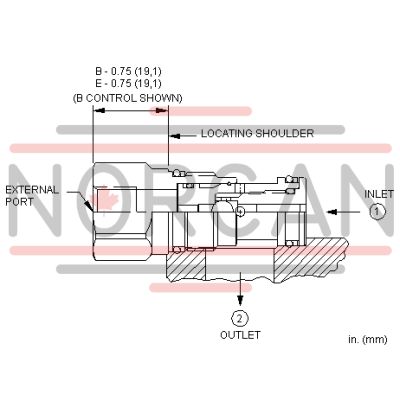

The single ball shuttle connects the higher of two work ports to the signal or common port. It features an external load port located in the hex-end of the cartridge and the signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 2.5 gpm10 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
