SUN HYDRAULICS
CSACBXV
$43.49 USD
- SUN HYDRAULICS
- Material:CSACBXV
- Model:CSAC-BXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSACBXV (CSACBXV) is a high-performing hydraulic shuttle valve designed for advanced fluid power applications. This model is engineered to connect the higher of two work ports to the signal or common port efficiently. It incorporates a unique single ball mechanism, which facilitates the decay of the pressure signal when both load ports experience a drop in pressure. The valve's construction includes hardened steel balls and seats, enhancing its wear resistance and tolerance to contamination. The CSACBXV features an external load port located in the hex end of the cartridge, with the signal being sensed at port 2. This design ensures reliable operation under various conditions. With a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 2.5 gpm (10 L/min), it meets stringent performance criteria for demanding applications. Additionally, it exhibits minimal valve leakage at 110 SUS (24 cSt), maintaining efficiency with only about 5 drops/min (0.3 cc/min). This model is also equipped with Sun Hydraulics' floating style construction, which minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. The valve is designed for installation with specific torque settings ranging from 30-35 lbf ft (41-47 Nm) and has a compact weight of .20 lb (0.10 kg). The CSACBXV utilizes Viton seals for enhanced durability and chemical resistance, ensuring long-term reliability in various hydraulic systems.
The Sun Hydraulics CSACBXV (CSACBXV) is a high-performing hydraulic shuttle valve designed for advanced fluid power applications. This model is engineered to connect the higher of two work ports to the signal or common port efficiently. It incorporates a unique single ball mechanism, which facilitates the decay of the pressure signal when both load ports experience a drop in pressure. The valve's construction includes hardened steel balls and seats, enhancing its wear resistance and tolerance to contamination. The CSACBXV features an external load port located in the hex end of the cartridge, with the signal being sensed at port 2. This design ensures reliable operation under various conditions. With a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 2.5 gpm (10 L/min), it meets stringent performance criteria for demanding applications. Additionally, it exhibits minimal valve leakage at 110 SUS (24 cSt), maintaining efficiency with only about 5 drops/min (0.3 cc/min). This model is also equipped with Sun Hydraulics' floating style construction, which minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. The valve is designed for installation with specific torque settings ranging from 30-35 lbf ft (41-47 Nm) and has a compact weight of .20 lb (0.10 kg). The CSACBXV utilizes Viton seals for enhanced durability and chemical resistance, ensuring long-term reliability in various hydraulic systems.

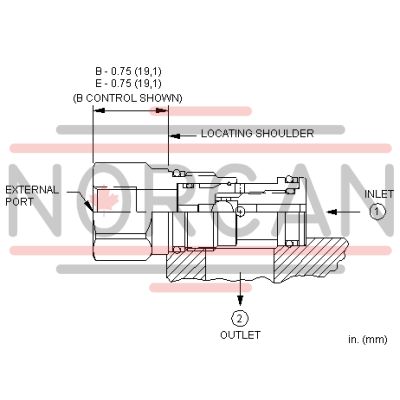

The single ball shuttle connects the higher of two work ports to the signal or common port. It features an external load port located in the hex-end of the cartridge and the signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 2.5 gpm10 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-010-006 |
