SUN HYDRAULICS
CSADAXV
$40.81 USD
- SUN HYDRAULICS
- Material:CSADAXV
- Model:CSAD-AXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSADAXV (CSADAXV) is a meticulously engineered shuttle valve designed for hydraulic systems requiring reliable pressure signal management. This valve features a single ball shuttle that effectively connects the higher of two work ports to the signal or common port, with the pressure signal being sensed at port 2. The construction includes hardened steel balls and seats, enhancing its wear characteristics and contamination tolerance, making it ideal for demanding applications. The CSADAXV operates efficiently under a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of 2.5 gpm (10 L/min). It is particularly noted for its minimal valve leakage, which is rated at about 5 drops/min (0.3 cc/min). This precision is crucial in maintaining system integrity and performance. The valve\u2019s specifications also include a hex size of 7/8 in (22.2 mm) and an installation torque range of 30-35 lbf ft (41-47 Nm), ensuring secure and straightforward installation. Designed with Sun\u2019s floating style construction, the CSADAXV minimizes internal parts binding that might otherwise occur due to excessive installation torque or variations in cavity/cartridge machining. This feature underscores its robustness and adaptability across various hydraulic setups. For systems utilizing phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these should not be used with petroleum-based fluids as they could damage the seals. Weighing just 0.20 lb (0.10 kg), this model blends lightweight design with high functionality, making it an excellent choice for both mobile and industrial applications where space and efficiency are key considerations.
The Sun Hydraulics CSADAXV (CSADAXV) is a meticulously engineered shuttle valve designed for hydraulic systems requiring reliable pressure signal management. This valve features a single ball shuttle that effectively connects the higher of two work ports to the signal or common port, with the pressure signal being sensed at port 2. The construction includes hardened steel balls and seats, enhancing its wear characteristics and contamination tolerance, making it ideal for demanding applications. The CSADAXV operates efficiently under a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of 2.5 gpm (10 L/min). It is particularly noted for its minimal valve leakage, which is rated at about 5 drops/min (0.3 cc/min). This precision is crucial in maintaining system integrity and performance. The valve\u2019s specifications also include a hex size of 7/8 in (22.2 mm) and an installation torque range of 30-35 lbf ft (41-47 Nm), ensuring secure and straightforward installation. Designed with Sun\u2019s floating style construction, the CSADAXV minimizes internal parts binding that might otherwise occur due to excessive installation torque or variations in cavity/cartridge machining. This feature underscores its robustness and adaptability across various hydraulic setups. For systems utilizing phosphate ester fluids, cartridges configured with EPDM seals are recommended; however, these should not be used with petroleum-based fluids as they could damage the seals. Weighing just 0.20 lb (0.10 kg), this model blends lightweight design with high functionality, making it an excellent choice for both mobile and industrial applications where space and efficiency are key considerations.

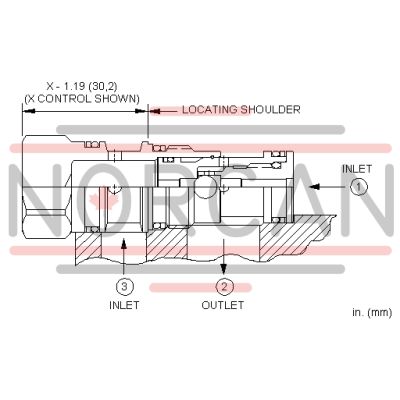

The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 2.5 gpm10 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
