SUN HYDRAULICS
CSAMXXV
$34.85 USD
- SUN HYDRAULICS
- Material:CSAMXXV
- Model:CSAM-XXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSAMXXV (CSAMXXV) is a precision-engineered single ball shuttle valve designed for high-performance hydraulic systems. This valve is specifically constructed to connect the higher of two work ports to the signal or common port, with the signal being sensed externally out the back of the cartridge. The CSAMXXV model is an insert style valve, intended for integration within a manifold or actuator, ensuring a compact and efficient hydraulic system setup. Key features of this model include its construction with hardened steel balls and seats, which significantly enhance wear characteristics and provide robust contamination tolerance. The valve's design allows for the decay of the pressure signal when both load ports drop to a lower pressure, thereby ensuring stable system performance under varying load conditions. Additionally, it incorporates Sun\u2019s floating style construction which minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. The CSAMXXV operates efficiently with a maximum capacity of 1.25 gpm (4.7 L/min) and can handle up to 5000 psi (350 bar) of operating pressure. Its design specifications also include a maximum allowable leakage at 110 SUS (24 cSt) of about 5 drops/min (0.3 cc/min), making it highly reliable in maintaining system integrity. Installation specifications recommend a torque between 20 - 25 lbf ft (27 - 33 Nm), and it features an internal hex size of 5/16 in (8 mm). The model weighs approximately 0.20 lb (0.10 kg), allowing for easy handling and installation without significant weight impact on the system. This shuttle valve is ideal for applications requiring precise control over hydraulic flow with minimal leakage, providing enhanced performance reliability in complex hydraulic systems.
The Sun Hydraulics CSAMXXV (CSAMXXV) is a precision-engineered single ball shuttle valve designed for high-performance hydraulic systems. This valve is specifically constructed to connect the higher of two work ports to the signal or common port, with the signal being sensed externally out the back of the cartridge. The CSAMXXV model is an insert style valve, intended for integration within a manifold or actuator, ensuring a compact and efficient hydraulic system setup. Key features of this model include its construction with hardened steel balls and seats, which significantly enhance wear characteristics and provide robust contamination tolerance. The valve's design allows for the decay of the pressure signal when both load ports drop to a lower pressure, thereby ensuring stable system performance under varying load conditions. Additionally, it incorporates Sun\u2019s floating style construction which minimizes internal part binding that could result from excessive installation torque or variations in cavity/cartridge machining. The CSAMXXV operates efficiently with a maximum capacity of 1.25 gpm (4.7 L/min) and can handle up to 5000 psi (350 bar) of operating pressure. Its design specifications also include a maximum allowable leakage at 110 SUS (24 cSt) of about 5 drops/min (0.3 cc/min), making it highly reliable in maintaining system integrity. Installation specifications recommend a torque between 20 - 25 lbf ft (27 - 33 Nm), and it features an internal hex size of 5/16 in (8 mm). The model weighs approximately 0.20 lb (0.10 kg), allowing for easy handling and installation without significant weight impact on the system. This shuttle valve is ideal for applications requiring precise control over hydraulic flow with minimal leakage, providing enhanced performance reliability in complex hydraulic systems.
The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed externally out the back of the cartridge.

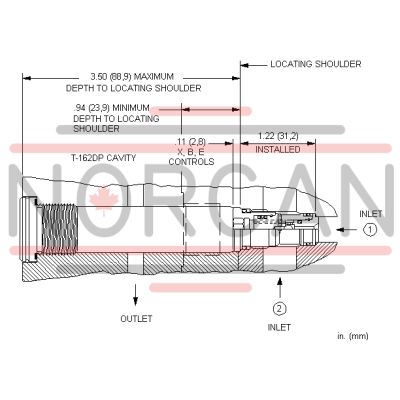

- This valve is what we call an Insert style. It is meant to be buried in a manifold or actuator. The cavity drawing for the T-162DP cavity contains a lot of detailed information and should be studied closely when applying this valve.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162DP |
| Series | 0 |
| Capacity | 1.25 gpm4,7 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Internal Hex Size | 5/16 in.8 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
