SUN HYDRAULICS
CSANXXN
$25.42 USD
- SUN HYDRAULICS
- Material:CSANXXN
- Model:CSAN-XXN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSANXXN (CSANXXN) is a high-performance hydraulic shuttle valve designed for seamless integration into manifold or actuator systems. This insert-style valve is engineered specifically to operate within the T162DP cavity, providing robust performance with detailed installation guidelines available in the cavity drawing documentation. The CSANXXN features a single ball shuttle mechanism that effectively connects the higher of two work ports to the signal or common port, with the pressure signal sensed at port 2. This valve showcases exceptional wear characteristics and contamination tolerance due to its construction with hardened steel balls and seats. Its design allows for the decay of the pressure signal when both load ports experience a drop in pressure, ensuring reliable operation under varying conditions. Additionally, Sun Hydraulics has incorporated their floating style construction into this model to minimize potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. The CSANXXN can handle a maximum flow capacity of 1.25 gpm (4.7 L/min) and is rated for a maximum operating pressure of 5000 psi (350 bar). It also features stringent leakage specifications, with maximum valve leakage at 110 SUS (24 cSt) being limited to 5 drops/min (0.3 cc/min). For installation, it requires an internal hex size of 5/16 in. (8 mm) and an installation torque between 20 - 25 lbf ft (27 - 33 Nm). The overall weight of the model is minimal at .20 lb (0.10 kg), making it suitable for various applications where space and weight are critical factors.
The Sun Hydraulics CSANXXN (CSANXXN) is a high-performance hydraulic shuttle valve designed for seamless integration into manifold or actuator systems. This insert-style valve is engineered specifically to operate within the T162DP cavity, providing robust performance with detailed installation guidelines available in the cavity drawing documentation. The CSANXXN features a single ball shuttle mechanism that effectively connects the higher of two work ports to the signal or common port, with the pressure signal sensed at port 2. This valve showcases exceptional wear characteristics and contamination tolerance due to its construction with hardened steel balls and seats. Its design allows for the decay of the pressure signal when both load ports experience a drop in pressure, ensuring reliable operation under varying conditions. Additionally, Sun Hydraulics has incorporated their floating style construction into this model to minimize potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. The CSANXXN can handle a maximum flow capacity of 1.25 gpm (4.7 L/min) and is rated for a maximum operating pressure of 5000 psi (350 bar). It also features stringent leakage specifications, with maximum valve leakage at 110 SUS (24 cSt) being limited to 5 drops/min (0.3 cc/min). For installation, it requires an internal hex size of 5/16 in. (8 mm) and an installation torque between 20 - 25 lbf ft (27 - 33 Nm). The overall weight of the model is minimal at .20 lb (0.10 kg), making it suitable for various applications where space and weight are critical factors.
The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 2.

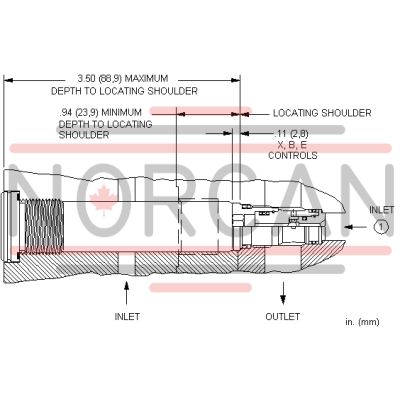

- This valve is what we call an Insert style. It is meant to be buried in a manifold or actuator. The cavity drawing for the T-162DP cavity contains a lot of detailed information and should be studied closely when applying this valve.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162DP |
| Series | 0 |
| Capacity | 1.25 gpm4,7 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Internal Hex Size | 5/16 in.8 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
