SUN HYDRAULICS
CSANXXV
$31.87 USD
- SUN HYDRAULICS
- Material:CSANXXV
- Model:CSAN-XXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSANXXV (CSANXXV) is a high-performance shuttle valve designed for hydraulic applications requiring reliable switching between two pressure sources. Engineered to connect the higher of two work ports to a signal or common port, with the signal being sensed at port 2, this valve is essential for systems where pressure signal management is critical. The CSANXXV operates within a maximum pressure of 5000 psi (350 bar) and has a flow capacity of up to 1.25 gpm (4.7 L/min), making it suitable for various medium-duty applications. Constructed as an insert-style valve, the CSANXXV is intended for integration directly into manifolds or actuators, ensuring a secure and compact installation. This model utilizes a single ball mechanism which allows pressure decay when both load ports experience a drop in pressure, enhancing the system's response and stability under changing load conditions. Featuring hardened steel balls and seats, the CSANXXV exhibits excellent wear characteristics and high contamination tolerance, extending its operational life and reliability even in harsh environments. Additionally, it incorporates Sun\u2019s floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining. The valve's design specifics include an internal hex size of 5/16 inch (8 mm) and an installation torque range of 20 - 25 lbf ft (27 - 33 Nm). With its compact model weight of .20 lb (0.10 kg), the CSANXXV offers an efficient solution without adding significant bulk to the system configuration. For maintenance or repairs, a Viton seal kit is specified for this model, ensuring compatibility and ease of servicing when necessary.
The Sun Hydraulics CSANXXV (CSANXXV) is a high-performance shuttle valve designed for hydraulic applications requiring reliable switching between two pressure sources. Engineered to connect the higher of two work ports to a signal or common port, with the signal being sensed at port 2, this valve is essential for systems where pressure signal management is critical. The CSANXXV operates within a maximum pressure of 5000 psi (350 bar) and has a flow capacity of up to 1.25 gpm (4.7 L/min), making it suitable for various medium-duty applications. Constructed as an insert-style valve, the CSANXXV is intended for integration directly into manifolds or actuators, ensuring a secure and compact installation. This model utilizes a single ball mechanism which allows pressure decay when both load ports experience a drop in pressure, enhancing the system's response and stability under changing load conditions. Featuring hardened steel balls and seats, the CSANXXV exhibits excellent wear characteristics and high contamination tolerance, extending its operational life and reliability even in harsh environments. Additionally, it incorporates Sun\u2019s floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining. The valve's design specifics include an internal hex size of 5/16 inch (8 mm) and an installation torque range of 20 - 25 lbf ft (27 - 33 Nm). With its compact model weight of .20 lb (0.10 kg), the CSANXXV offers an efficient solution without adding significant bulk to the system configuration. For maintenance or repairs, a Viton seal kit is specified for this model, ensuring compatibility and ease of servicing when necessary.
The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 2.

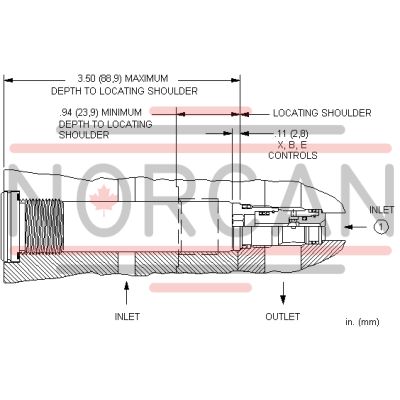

- This valve is what we call an Insert style. It is meant to be buried in a manifold or actuator. The cavity drawing for the T-162DP cavity contains a lot of detailed information and should be studied closely when applying this valve.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162DP |
| Series | 0 |
| Capacity | 1.25 gpm4,7 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Internal Hex Size | 5/16 in.8 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
