SUN HYDRAULICS
CSAWBXN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

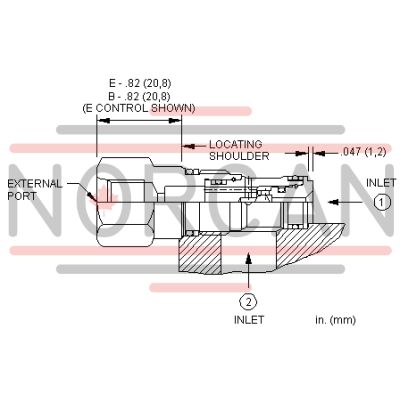

The Sun Hydraulics CSAWBXN (CSAWBXN) is a high-performance shuttle valve designed for hydraulic applications requiring reliable pressure signal management between two work ports. This model utilizes a single ball shuttle mechanism, which effectively connects the higher of two pressures either to a signal or a common port, with the pressure signal being sensed at an external port located in the hex end of the cartridge. The CSAWBXN is built to offer superior wear characteristics and contamination tolerance, thanks to its hardened steel balls and seats. This valve is particularly noted for its ability to allow the decay of the pressure signal when both load ports drop to a lower pressure. Additionally, it incorporates Sun's floating style construction which minimizes internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. The CSAWBXN fits into a T-16A cavity and operates efficiently within a flow capacity of 1.25 gpm (4.7 L/min) and can withstand a maximum operating pressure up to 5000 psi (350 bar). Other technical specifications include a maximum valve leakage at 110 SUS (24 cSt) of approximately 5 drops/min (0.3 cc/min), and it requires an installation torque between 20 - 25 lbf.ft (27 - 33 Nm). The valve\u2019s hex size is 3/4 in. (19.1 mm) and it weighs about 0.20 lb (0.10 kg). For maintenance, Viton seal kits are recommended for this model, ensuring prolonged operational efficiency and reliability in various direct acting hydraulic systems.
