SUN HYDRAULICS
CSAYBXN
$33.26 USD
- SUN HYDRAULICS
- Material:CSAYBXN
- Model:CSAY-BXN
- Summary:Cartridge
Quantity in stock: 4
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSAYBXN (CSAYBXN) is a high-performance shuttle valve designed for hydraulic applications requiring reliable pressure selection between two sources. This model employs a single ball mechanism that connects the higher of two work ports to either a signal or common port, enhancing operational efficiency and effectiveness. It is particularly noted for its external load port located in the hex end of the cartridge and senses signals at port 2, facilitating versatile application in various hydraulic systems. The CSAYBXN is built with hardened steel balls and seats, which provide outstanding wear characteristics and high contamination tolerance, ensuring longevity and consistent performance even under demanding conditions. The valve's design includes Sun's floating style construction which significantly reduces the risk of internal parts binding that can occur due to excessive installation torque or variations in cavity/cartridge machining. With a capacity of 1.25 gpm (4.7 L/min) and a maximum operating pressure of 5000 psi (350 bar), this model is equipped to handle substantial flow rates and pressure levels efficiently. The valve also boasts minimal leakage, with a maximum rate of 5 drops/min (0.3 cc/min), ensuring precise control over hydraulic fluid movements. Additional technical specifications include a valve hex size of 3/4 inch (19.1 mm) and an installation torque range of 20 - 25 lbf ft (27 - 33 Nm). The model's compact design results in a lightweight footprint at just .20 lb (0.10 kg), making it easy to integrate into various setups without adding significant bulk or weight. Ideal for applications where precise pressure selection between sources is critical, the CSAYBXN offers robustness, reliability, and performance that can significantly enhance hydraulic system operations.
The Sun Hydraulics CSAYBXN (CSAYBXN) is a high-performance shuttle valve designed for hydraulic applications requiring reliable pressure selection between two sources. This model employs a single ball mechanism that connects the higher of two work ports to either a signal or common port, enhancing operational efficiency and effectiveness. It is particularly noted for its external load port located in the hex end of the cartridge and senses signals at port 2, facilitating versatile application in various hydraulic systems. The CSAYBXN is built with hardened steel balls and seats, which provide outstanding wear characteristics and high contamination tolerance, ensuring longevity and consistent performance even under demanding conditions. The valve's design includes Sun's floating style construction which significantly reduces the risk of internal parts binding that can occur due to excessive installation torque or variations in cavity/cartridge machining. With a capacity of 1.25 gpm (4.7 L/min) and a maximum operating pressure of 5000 psi (350 bar), this model is equipped to handle substantial flow rates and pressure levels efficiently. The valve also boasts minimal leakage, with a maximum rate of 5 drops/min (0.3 cc/min), ensuring precise control over hydraulic fluid movements. Additional technical specifications include a valve hex size of 3/4 inch (19.1 mm) and an installation torque range of 20 - 25 lbf ft (27 - 33 Nm). The model's compact design results in a lightweight footprint at just .20 lb (0.10 kg), making it easy to integrate into various setups without adding significant bulk or weight. Ideal for applications where precise pressure selection between sources is critical, the CSAYBXN offers robustness, reliability, and performance that can significantly enhance hydraulic system operations.

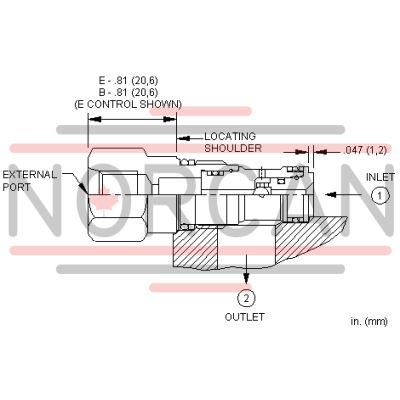

The single ball shuttle connects the higher of two work ports to the signal or common port. It features an external load port located in the hex-end of the cartridge and the signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 1.25 gpm4,7 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
