SUN HYDRAULICS
CSAYBXV
$39.71 USD
- SUN HYDRAULICS
- Material:CSAYBXV
- Model:CSAY-BXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSAYBXV (CSAYBXV) is a high-performance shuttle valve designed for hydraulic systems requiring reliable switching between two pressure sources. This single ball shuttle valve connects the higher of two work ports to either a signal or common port, ensuring efficient control of fluid flow within hydraulic circuits. Its unique feature includes an external load port located in the hex end of the cartridge, with the signal being sensed at port 2. The CSAYBXV is built to withstand challenging conditions, featuring hardened steel balls and seats which provide exceptional wear characteristics and contamination tolerance. This design choice enhances the valve's durability and longevity, even under high-pressure operations up to 5000 psi (350 bar). Additionally, the valve supports a maximum flow capacity of 1.25 gpm (4.7 L/min), making it suitable for various medium-scale hydraulic applications. Another significant aspect of this model is its incorporation of Sun's floating style construction. This design minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining, thus ensuring consistent performance and reliability. The installation specifications include a valve hex size of 3/4 in (19.1 mm) and an installation torque range of 20 - 25 lbf ft (27 - 33 Nm), which facilitates easy integration into existing hydraulic systems without requiring extensive modifications. Overall, the Sun Hydraulics CSAYBXV shuttle valve is an essential component for applications where precise fluid control and reliability are critical, providing both versatility and robustness in a compact form factor.
The Sun Hydraulics CSAYBXV (CSAYBXV) is a high-performance shuttle valve designed for hydraulic systems requiring reliable switching between two pressure sources. This single ball shuttle valve connects the higher of two work ports to either a signal or common port, ensuring efficient control of fluid flow within hydraulic circuits. Its unique feature includes an external load port located in the hex end of the cartridge, with the signal being sensed at port 2. The CSAYBXV is built to withstand challenging conditions, featuring hardened steel balls and seats which provide exceptional wear characteristics and contamination tolerance. This design choice enhances the valve's durability and longevity, even under high-pressure operations up to 5000 psi (350 bar). Additionally, the valve supports a maximum flow capacity of 1.25 gpm (4.7 L/min), making it suitable for various medium-scale hydraulic applications. Another significant aspect of this model is its incorporation of Sun's floating style construction. This design minimizes potential internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining, thus ensuring consistent performance and reliability. The installation specifications include a valve hex size of 3/4 in (19.1 mm) and an installation torque range of 20 - 25 lbf ft (27 - 33 Nm), which facilitates easy integration into existing hydraulic systems without requiring extensive modifications. Overall, the Sun Hydraulics CSAYBXV shuttle valve is an essential component for applications where precise fluid control and reliability are critical, providing both versatility and robustness in a compact form factor.

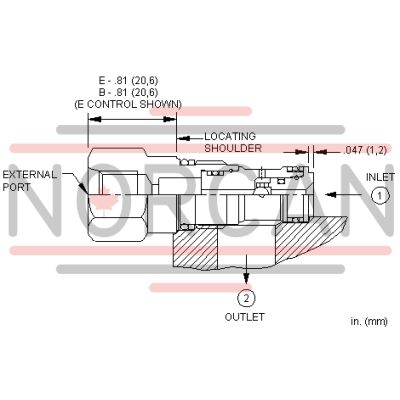

The single ball shuttle connects the higher of two work ports to the signal or common port. It features an external load port located in the hex-end of the cartridge and the signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 1.25 gpm4,7 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
