SUN HYDRAULICS
CSAYEXN
$33.26 USD
- SUN HYDRAULICS
- Material:CSAYEXN
- Model:CSAY-EXN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSAYEXN (CSAYEXN) is a precision-engineered single ball shuttle valve designed for hydraulic systems requiring reliable switching between two work ports based on pressure signals. This valve connects the higher of the two work ports to either a signal or common port, ensuring optimal functionality in fluid power applications. The CSAYEXN features an external load port integrated into the hex end of the cartridge, with the signal sensed at port 2, enhancing its application versatility. Constructed with hardened steel balls and seats, the CSAYEXN exhibits superior wear characteristics and high contamination tolerance, making it suitable for demanding operational environments. The shuttle valve's design allows for pressure signal decay when both load ports experience a drop in pressure, maintaining system stability and performance. Additionally, it incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue stemming from excessive installation torque or variations in cavity/cartridge machining. Key specifications include a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 1.25 gpm (4.7 L/min). Its compact form factor has a minimal weight of 0.20 lb (0.10 kg) and requires an installation torque between 20-25 lbf ft (27-33 Nm), ensuring easy integration into various setups without significant modifications. The valve also features minimal leakage rates at 5 drops/min (0.3 cc/min), contributing to system efficiency and reduced maintenance requirements. Overall, the Sun Hydraulics CSAYEXN is designed for high-performance hydraulic systems where precise control over fluid direction based on pressure differentials is essential.
The Sun Hydraulics CSAYEXN (CSAYEXN) is a precision-engineered single ball shuttle valve designed for hydraulic systems requiring reliable switching between two work ports based on pressure signals. This valve connects the higher of the two work ports to either a signal or common port, ensuring optimal functionality in fluid power applications. The CSAYEXN features an external load port integrated into the hex end of the cartridge, with the signal sensed at port 2, enhancing its application versatility. Constructed with hardened steel balls and seats, the CSAYEXN exhibits superior wear characteristics and high contamination tolerance, making it suitable for demanding operational environments. The shuttle valve's design allows for pressure signal decay when both load ports experience a drop in pressure, maintaining system stability and performance. Additionally, it incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue stemming from excessive installation torque or variations in cavity/cartridge machining. Key specifications include a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 1.25 gpm (4.7 L/min). Its compact form factor has a minimal weight of 0.20 lb (0.10 kg) and requires an installation torque between 20-25 lbf ft (27-33 Nm), ensuring easy integration into various setups without significant modifications. The valve also features minimal leakage rates at 5 drops/min (0.3 cc/min), contributing to system efficiency and reduced maintenance requirements. Overall, the Sun Hydraulics CSAYEXN is designed for high-performance hydraulic systems where precise control over fluid direction based on pressure differentials is essential.

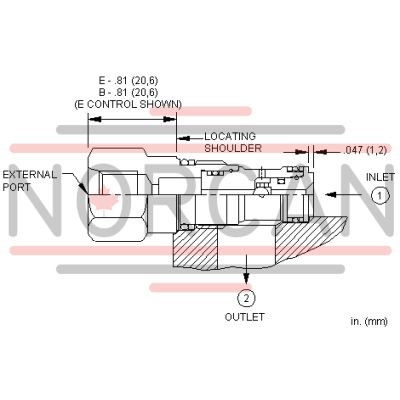

The single ball shuttle connects the higher of two work ports to the signal or common port. It features an external load port located in the hex-end of the cartridge and the signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 1.25 gpm4,7 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
