SUN HYDRAULICS
CSAYEXV
$39.71 USD
- SUN HYDRAULICS
- Material:CSAYEXV
- Model:CSAY-EXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSAYEXV (CSAYEXV) is a meticulously engineered shuttle valve designed for hydraulic systems requiring reliable load sensing and signal routing capabilities. This model is particularly noted for its single ball shuttle mechanism, which effectively connects the higher of two work ports to the signal or common port. The valve's construction includes an external load port at the hex end of the cartridge, with the signal being sensed at port 2, enhancing its functionality in various hydraulic setups. The CSAYEXV stands out for its robust design featuring hardened steel balls and seats, which significantly enhances its wear characteristics and tolerance to contamination. This makes it suitable for applications where durability and reliability are critical. Additionally, the valve incorporates Sun's floating style construction that minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. With a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 1.25 gpm (4.7 L/min), this model is equipped to handle demanding hydraulic tasks efficiently. The precision in manufacturing also ensures minimal leakage, limited to 5 drops/min (0.3 cc/min), thereby maintaining system integrity and performance. The CSAYEXV's specifications include a valve hex size of 3/4 in. (19.1 mm) and an installation torque range between 20-25 lbf ft (27-33 Nm). Weighing just .20 lb (0.10 kg), it is both compact and easy to integrate into existing systems without significant modifications. The use of Viton seals further underscores its suitability for high-performance applications where thermal stability and chemical resistance are required.
The Sun Hydraulics CSAYEXV (CSAYEXV) is a meticulously engineered shuttle valve designed for hydraulic systems requiring reliable load sensing and signal routing capabilities. This model is particularly noted for its single ball shuttle mechanism, which effectively connects the higher of two work ports to the signal or common port. The valve's construction includes an external load port at the hex end of the cartridge, with the signal being sensed at port 2, enhancing its functionality in various hydraulic setups. The CSAYEXV stands out for its robust design featuring hardened steel balls and seats, which significantly enhances its wear characteristics and tolerance to contamination. This makes it suitable for applications where durability and reliability are critical. Additionally, the valve incorporates Sun's floating style construction that minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. With a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 1.25 gpm (4.7 L/min), this model is equipped to handle demanding hydraulic tasks efficiently. The precision in manufacturing also ensures minimal leakage, limited to 5 drops/min (0.3 cc/min), thereby maintaining system integrity and performance. The CSAYEXV's specifications include a valve hex size of 3/4 in. (19.1 mm) and an installation torque range between 20-25 lbf ft (27-33 Nm). Weighing just .20 lb (0.10 kg), it is both compact and easy to integrate into existing systems without significant modifications. The use of Viton seals further underscores its suitability for high-performance applications where thermal stability and chemical resistance are required.

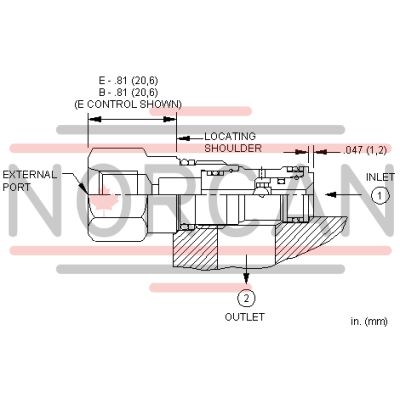

The single ball shuttle connects the higher of two work ports to the signal or common port. It features an external load port located in the hex-end of the cartridge and the signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 1.25 gpm4,7 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
