SUN HYDRAULICS
CSAZEXN
$28.99 USD
- SUN HYDRAULICS
- Material:CSAZEXN
- Model:CSAZ-EXN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSAZEXN (CSAZEXN) is a meticulously designed shuttle valve that plays a crucial role in hydraulic systems by connecting the higher of two work ports to a signal or common port, with the signal being sensed at port 2. This model is specifically engineered to handle a flow capacity of 1.25 gallons per minute (4.7 liters per minute) and can withstand a maximum operating pressure of 5000 psi (350 bar). The CSAZEXN features a single ball shuttle mechanism, which not only allows for the decay of the pressure signal when both load ports drop to lower pressure but also enhances system reliability and response. Crafted with hardened steel balls and seats, this shuttle valve exhibits superior wear characteristics and has a high tolerance for contamination, making it suitable for various demanding applications. Additionally, it incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This design consideration ensures consistent performance and longevity. The valve's specifications include a maximum leakage rate of 5 drops per minute at 110 SUS (24 cSt), which equates to approximately 0.3 cc/min, ensuring efficient operation with minimal fluid loss. It requires an installation torque between 20 to 25 lbf\u00b7ft (27 to 33 Nm) and has a compact model weight of about 0.20 lb (0.10 kg). The CSAZEXN uses Viton seals for enhanced durability against high temperatures and chemical exposure, further affirming its robustness in industrial applications. This model is housed within the T163A cavity and belongs to series 0, reflecting its design and operational criteria set by Sun Hydraulics for this type of hydraulic component.
The Sun Hydraulics CSAZEXN (CSAZEXN) is a meticulously designed shuttle valve that plays a crucial role in hydraulic systems by connecting the higher of two work ports to a signal or common port, with the signal being sensed at port 2. This model is specifically engineered to handle a flow capacity of 1.25 gallons per minute (4.7 liters per minute) and can withstand a maximum operating pressure of 5000 psi (350 bar). The CSAZEXN features a single ball shuttle mechanism, which not only allows for the decay of the pressure signal when both load ports drop to lower pressure but also enhances system reliability and response. Crafted with hardened steel balls and seats, this shuttle valve exhibits superior wear characteristics and has a high tolerance for contamination, making it suitable for various demanding applications. Additionally, it incorporates Sun\u2019s floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or variations in cavity/cartridge machining. This design consideration ensures consistent performance and longevity. The valve's specifications include a maximum leakage rate of 5 drops per minute at 110 SUS (24 cSt), which equates to approximately 0.3 cc/min, ensuring efficient operation with minimal fluid loss. It requires an installation torque between 20 to 25 lbf\u00b7ft (27 to 33 Nm) and has a compact model weight of about 0.20 lb (0.10 kg). The CSAZEXN uses Viton seals for enhanced durability against high temperatures and chemical exposure, further affirming its robustness in industrial applications. This model is housed within the T163A cavity and belongs to series 0, reflecting its design and operational criteria set by Sun Hydraulics for this type of hydraulic component.

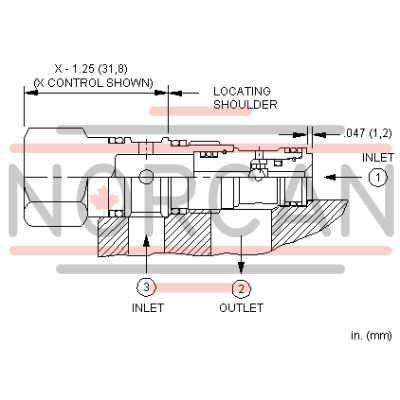

The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-163A |
| Series | 0 |
| Capacity | 1.25 gpm4,7 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-163-006 |
