SUN HYDRAULICS
CSAZEXV
$36.94 USD
- SUN HYDRAULICS
- Material:CSAZEXV
- Model:CSAZ-EXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSAZEXV (CSAZEXV) is a shuttle valve designed for hydraulic systems requiring reliable alternate pressure selection between two sources. This model, equipped with a single ball shuttle, efficiently connects the higher of two work ports to a signal or common port, with the pressure signal sensed at port 2. The CSAZEXV showcases robust construction features including hardened steel balls and seats that enhance wear characteristics and provide high contamination tolerance. This valve is particularly noted for its ability to allow the decay of the pressure signal when both load ports experience a drop in pressure. The incorporation of Sun's floating style construction minimizes potential internal parts binding which can occur due to excessive installation torque or variations in cavity/cartridge machining. This feature ensures consistent operational reliability and extends the service life of the valve. Key specifications include a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 1.25 gpm (4.7 L/min). The valve also demonstrates minimal leakage, with a maximum rate of 5 drops/min at 110 SUS (24 cSt). Installation specifications are equally precise, requiring an installation torque between 20 - 25 lbf-ft (27 - 33 Nm) and accommodating a valve hex size of 3/4 in (19.1 mm). Weighing just .20 lb (0.10 kg), this model is compact yet robust enough to handle demanding applications. In terms of maintenance, the CSAZEXV utilizes Viton seals for enhanced performance under varying temperature conditions, ensuring long-term durability and resistance against fluid corrosions. This makes it an ideal choice for systems where precision and reliability are paramount in managing hydraulic pressures effectively.
The Sun Hydraulics CSAZEXV (CSAZEXV) is a shuttle valve designed for hydraulic systems requiring reliable alternate pressure selection between two sources. This model, equipped with a single ball shuttle, efficiently connects the higher of two work ports to a signal or common port, with the pressure signal sensed at port 2. The CSAZEXV showcases robust construction features including hardened steel balls and seats that enhance wear characteristics and provide high contamination tolerance. This valve is particularly noted for its ability to allow the decay of the pressure signal when both load ports experience a drop in pressure. The incorporation of Sun's floating style construction minimizes potential internal parts binding which can occur due to excessive installation torque or variations in cavity/cartridge machining. This feature ensures consistent operational reliability and extends the service life of the valve. Key specifications include a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 1.25 gpm (4.7 L/min). The valve also demonstrates minimal leakage, with a maximum rate of 5 drops/min at 110 SUS (24 cSt). Installation specifications are equally precise, requiring an installation torque between 20 - 25 lbf-ft (27 - 33 Nm) and accommodating a valve hex size of 3/4 in (19.1 mm). Weighing just .20 lb (0.10 kg), this model is compact yet robust enough to handle demanding applications. In terms of maintenance, the CSAZEXV utilizes Viton seals for enhanced performance under varying temperature conditions, ensuring long-term durability and resistance against fluid corrosions. This makes it an ideal choice for systems where precision and reliability are paramount in managing hydraulic pressures effectively.

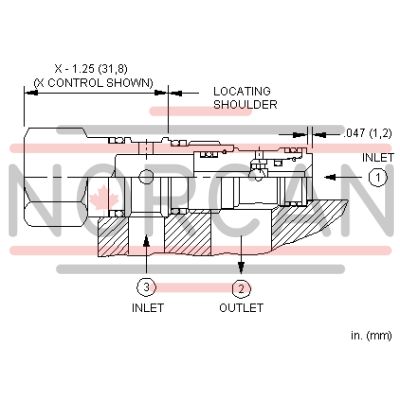

The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-163A |
| Series | 0 |
| Capacity | 1.25 gpm4,7 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-163-006 |
