SUN HYDRAULICS
CSAZXXV
$31.97 USD
- SUN HYDRAULICS
- Material:CSAZXXV
- Model:CSAZ-XXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSAZXXV (CSAZXXV) is a high-performance hydraulic shuttle valve designed for efficient operation in fluid power applications. This model employs a single ball shuttle mechanism, which connects the higher of two work ports to the signal or common port, with the signal being sensed at port 2. This design allows for the decay of the pressure signal when both load ports experience a drop in pressure, enhancing system responsiveness and stability. Constructed with hardened steel balls and seats, the CSAZXXV offers exceptional wear characteristics and tolerance to contamination, ensuring durability and reliability even under harsh operating conditions. It also incorporates Sun Hydraulics\u2019 distinctive floating style construction that helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. The CSAZXXV operates at a maximum capacity of 1.25 gpm (4.7 L/min) and can withstand pressures up to 5000 psi (350 bar). It features a valve hex size of 3/4 in. (19.1 mm) and requires an installation torque between 20 - 25 lbf-ft (27 - 33 Nm). The model's weight is notably light at approximately .20 lb (0.10 kg), facilitating easy integration into various hydraulic systems without significantly affecting overall system weight. With a maximum valve leakage rate specified at 5 drops/min (0.3 cc/min), this shuttle valve maintains system efficiency by minimizing fluid loss, crucial for maintaining operational accuracy and reducing maintenance needs. The CSAZXXV is equipped with Viton seals for enhanced performance across a range of temperatures and chemical environments, making it a versatile choice for diverse hydraulic applications.
The Sun Hydraulics CSAZXXV (CSAZXXV) is a high-performance hydraulic shuttle valve designed for efficient operation in fluid power applications. This model employs a single ball shuttle mechanism, which connects the higher of two work ports to the signal or common port, with the signal being sensed at port 2. This design allows for the decay of the pressure signal when both load ports experience a drop in pressure, enhancing system responsiveness and stability. Constructed with hardened steel balls and seats, the CSAZXXV offers exceptional wear characteristics and tolerance to contamination, ensuring durability and reliability even under harsh operating conditions. It also incorporates Sun Hydraulics\u2019 distinctive floating style construction that helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. The CSAZXXV operates at a maximum capacity of 1.25 gpm (4.7 L/min) and can withstand pressures up to 5000 psi (350 bar). It features a valve hex size of 3/4 in. (19.1 mm) and requires an installation torque between 20 - 25 lbf-ft (27 - 33 Nm). The model's weight is notably light at approximately .20 lb (0.10 kg), facilitating easy integration into various hydraulic systems without significantly affecting overall system weight. With a maximum valve leakage rate specified at 5 drops/min (0.3 cc/min), this shuttle valve maintains system efficiency by minimizing fluid loss, crucial for maintaining operational accuracy and reducing maintenance needs. The CSAZXXV is equipped with Viton seals for enhanced performance across a range of temperatures and chemical environments, making it a versatile choice for diverse hydraulic applications.

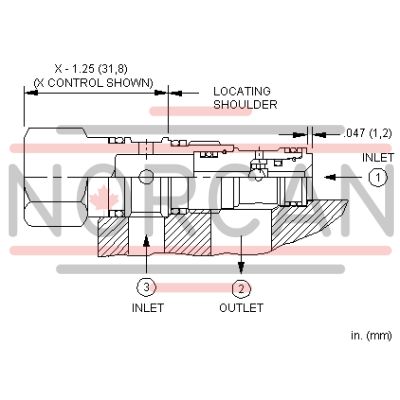

The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 2.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-163A |
| Series | 0 |
| Capacity | 1.25 gpm4,7 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-163-006 |
