SUN HYDRAULICS
CSZNXXV
$26.71 USD
- SUN HYDRAULICS
- Material:CSZNXXV
- Model:CSZN-XXV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CSZNXXV (CSZNXXV) is a precision-engineered hydraulic shuttle valve designed for seamless integration into manifold or actuator systems. This insert-style valve is specifically tailored for applications requiring reliable switching between two work ports based on the higher pressure signal, which is sensed at port 2. The CSZNXXV model operates with a single ball shuttle mechanism that facilitates the decay of the pressure signal when both load ports experience a drop in pressure, ensuring efficient and stable operation. Constructed with hardened steel balls and seats, the CSZNXXV valve offers exceptional wear characteristics and high tolerance to contamination, making it suitable for challenging industrial environments. It also incorporates Sun\u2019s unique floating style construction which minimizes potential issues such as internal parts binding, commonly caused by excessive installation torque or variations in cavity/cartridge machining. Designed to fit within a T382A cavity, this shuttle valve has a flow capacity of 1 gpm (4 L/min) and can withstand maximum operating pressures up to 5000 psi (350 bar). It also features an internal hex size of 5/32 in. (4 mm) and requires an installation torque between 100 - 120 lbf\u00b7in (11 - 14 Nm). The model weighs approximately 0.20 lb (0.10 kg), ensuring minimal impact on overall system weight. Additionally, the CSZNXXV is equipped with Viton seals for enhanced performance under varying conditions. This model\u2019s robust design and specifications make it ideal for direct-acting applications where speed and tolerance to contaminants are critical for system performance.
The Sun Hydraulics CSZNXXV (CSZNXXV) is a precision-engineered hydraulic shuttle valve designed for seamless integration into manifold or actuator systems. This insert-style valve is specifically tailored for applications requiring reliable switching between two work ports based on the higher pressure signal, which is sensed at port 2. The CSZNXXV model operates with a single ball shuttle mechanism that facilitates the decay of the pressure signal when both load ports experience a drop in pressure, ensuring efficient and stable operation. Constructed with hardened steel balls and seats, the CSZNXXV valve offers exceptional wear characteristics and high tolerance to contamination, making it suitable for challenging industrial environments. It also incorporates Sun\u2019s unique floating style construction which minimizes potential issues such as internal parts binding, commonly caused by excessive installation torque or variations in cavity/cartridge machining. Designed to fit within a T382A cavity, this shuttle valve has a flow capacity of 1 gpm (4 L/min) and can withstand maximum operating pressures up to 5000 psi (350 bar). It also features an internal hex size of 5/32 in. (4 mm) and requires an installation torque between 100 - 120 lbf\u00b7in (11 - 14 Nm). The model weighs approximately 0.20 lb (0.10 kg), ensuring minimal impact on overall system weight. Additionally, the CSZNXXV is equipped with Viton seals for enhanced performance under varying conditions. This model\u2019s robust design and specifications make it ideal for direct-acting applications where speed and tolerance to contaminants are critical for system performance.
The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 2.

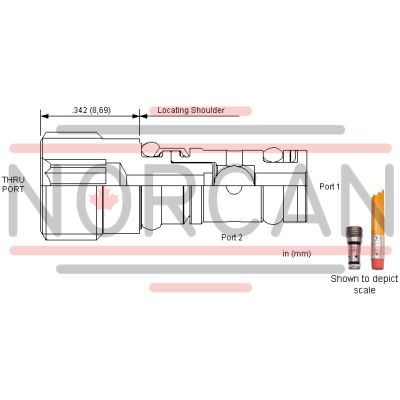

- This valve is what we call an Insert style. It is meant to be buried in a manifold or actuator. The cavity drawing for the T-382A cavity contains a lot of detailed information and should be studied closely when applying this valve.
- Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
- The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-382A |
| Series | Z |
| Capacity | 1 gpm4 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
| Valve Internal Hex Size | 5/32 in.4 mm |
| Valve Installation Torque | 100 - 120 lbf in.11 - 14 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-382-006 |
