The Sun Hydraulics CXADCCN (CXADCCN) is a highly efficient and reliable hydraulic check valve designed to facilitate free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. This two-port check valve is specifically engineered to correct manifold drilling inaccuracies in existing circuits, serving as a circuit saver by accommodating the same cavity for a given frame size. With a notable capacity reduction of approximately 30% compared to models with a nose-to-side flow path, this model still maintains robust functionality with an operational capacity of 7.5 gpm (30 L/min). The CXADCCN can withstand maximum operating pressures up to 5000 psi (350 bar) at both ports and is available with cracking pressures of 4, 30, and 75 psi (0.3, 2, and 5 bar). It features extremely low leakage rates, not exceeding one drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system efficiency. The valve's construction incorporates Sun's floating style design which minimizes internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. For installation, the valve requires a hex size of 3/4 inch (19.1 mm) and an installation torque between 20 - 25 lbf\u00b7ft (27 - 33 Nm). The model's weight is remarkably light at just .20 lb (0.10 kg), facilitating ease of handling and integration into hydraulic systems without adding significant weight. Additionally, it uses Viton seals for high temperature and chemical resistance, ensuring durability and long service life under varied environmental conditions.
The Sun Hydraulics CXADCCN (CXADCCN) is a highly efficient and reliable hydraulic check valve designed to facilitate free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. This two-port check valve is specifically engineered to correct manifold drilling inaccuracies in existing circuits, serving as a circuit saver by accommodating the same cavity for a given frame size. With a notable capacity reduction of approximately 30% compared to models with a nose-to-side flow path, this model still maintains robust functionality with an operational capacity of 7.5 gpm (30 L/min). The CXADCCN can withstand maximum operating pressures up to 5000 psi (350 bar) at both ports and is available with cracking pressures of 4, 30, and 75 psi (0.3, 2, and 5 bar). It features extremely low leakage rates, not exceeding one drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system efficiency. The valve's construction incorporates Sun's floating style design which minimizes internal parts binding that could result from excessive installation torque or variations in cavity/cartridge machining. For installation, the valve requires a hex size of 3/4 inch (19.1 mm) and an installation torque between 20 - 25 lbf\u00b7ft (27 - 33 Nm). The model's weight is remarkably light at just .20 lb (0.10 kg), facilitating ease of handling and integration into hydraulic systems without adding significant weight. Additionally, it uses Viton seals for high temperature and chemical resistance, ensuring durability and long service life under varied environmental conditions.

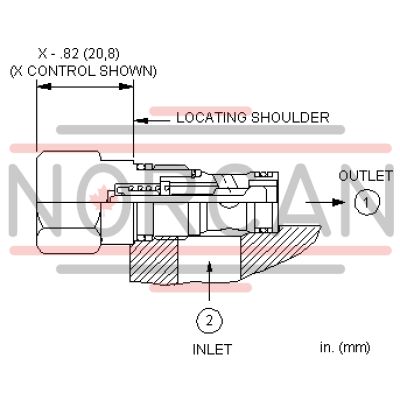

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Only available with 4, 30 and 75 psi (0,3, 2 and 5 bar) cracking pressures.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
