SUN HYDRAULICS
CXADCDN
$37.53 USD
- SUN HYDRAULICS
- Material:CXADCDN
- Model:CXAD-CDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXADCDN (CXADCDN) is a high-performance hydraulic check valve designed for efficient flow control in hydraulic systems. This model features a freeflow, side-to-nose configuration, allowing free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. It is suitable for applications where manifold drillings are incorrect, acting as a circuit saver by offering an alternative flow path. The CXADCDN check valve supports a maximum operating pressure of 5000 psi (350 bar) at both ports and has a flow capacity of up to 7.5 gpm (30 L/min). It is distinctive for its extremely low leakage rate, with maximum leakage less than 1 drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system efficiency. The valve is available with cracking pressures of 4, 30, and 75 psi (0.3, 2, and 5 bar), catering to various application requirements. Constructed with Sun\u2019s floating style design, the CXADCDN minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances reliability and longevity of the valve under various operational conditions. The model also includes a Viton seal kit for superior chemical resistance and performance durability. With its compact design, weighing only .20 lb (0.10 kg), and requiring an installation torque between 20 - 25 lbf ft (27 - 33 Nm), this check valve is easy to install and maintain. Its robust construction and precise engineering make it an ideal choice for demanding hydraulic applications requiring reliable non-return functionality.
The Sun Hydraulics CXADCDN (CXADCDN) is a high-performance hydraulic check valve designed for efficient flow control in hydraulic systems. This model features a freeflow, side-to-nose configuration, allowing free flow from the inlet port 2 to the outlet port 1 while blocking flow in the opposite direction. It is suitable for applications where manifold drillings are incorrect, acting as a circuit saver by offering an alternative flow path. The CXADCDN check valve supports a maximum operating pressure of 5000 psi (350 bar) at both ports and has a flow capacity of up to 7.5 gpm (30 L/min). It is distinctive for its extremely low leakage rate, with maximum leakage less than 1 drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system efficiency. The valve is available with cracking pressures of 4, 30, and 75 psi (0.3, 2, and 5 bar), catering to various application requirements. Constructed with Sun\u2019s floating style design, the CXADCDN minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature enhances reliability and longevity of the valve under various operational conditions. The model also includes a Viton seal kit for superior chemical resistance and performance durability. With its compact design, weighing only .20 lb (0.10 kg), and requiring an installation torque between 20 - 25 lbf ft (27 - 33 Nm), this check valve is easy to install and maintain. Its robust construction and precise engineering make it an ideal choice for demanding hydraulic applications requiring reliable non-return functionality.

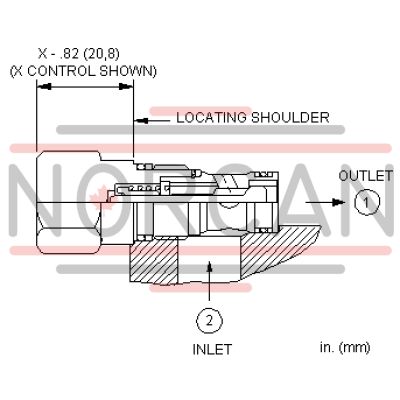

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Only available with 4, 30 and 75 psi (0,3, 2 and 5 bar) cracking pressures.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
