SUN HYDRAULICS
CXADCZV
$44.98 USD
- SUN HYDRAULICS
- Material:CXADCZV
- Model:CXAD-CZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXADCZV (CXADCZV) is a high-performance check valve designed for hydraulic systems requiring reliable, one-directional flow. This model is specifically engineered to allow free flow from inlet port 2 to outlet port 1 while effectively blocking flow in the reverse direction. The CXADCZV model stands out with its sidetonose configuration, which is particularly useful in correcting existing circuits with incorrect manifold drillings. Its design supports a maximum operating pressure of 5000 psi (350 bar) at both ports and offers a flow capacity of up to 7.5 gpm (30 L/min). The valve's construction includes Sun's innovative floating style, which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This ensures consistent performance and longevity of the valve under various operational conditions. Additionally, the CXADCZV features extremely low leakage rates, with a maximum of less than one drop per minute (0.07 cc/min), ensuring efficient system operation with minimal fluid loss. This model is available with cracking pressures at 4, 30, and 75 psi (0.3, 2, and 5 bar), allowing flexibility depending on application requirements. The compact design includes a hex size of 3/4 in (19.1 mm) and requires an installation torque between 20 \u2013 25 lbf\u00b7ft (27 \u2013 33 Nm), making it easy to install in tight spaces without special tools. Weighing only about .20 lb (0.10 kg), the CXADCZV provides an efficient solution for enhancing hydraulic circuit performance without adding significant weight or complexity to the system setup.
The Sun Hydraulics CXADCZV (CXADCZV) is a high-performance check valve designed for hydraulic systems requiring reliable, one-directional flow. This model is specifically engineered to allow free flow from inlet port 2 to outlet port 1 while effectively blocking flow in the reverse direction. The CXADCZV model stands out with its sidetonose configuration, which is particularly useful in correcting existing circuits with incorrect manifold drillings. Its design supports a maximum operating pressure of 5000 psi (350 bar) at both ports and offers a flow capacity of up to 7.5 gpm (30 L/min). The valve's construction includes Sun's innovative floating style, which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This ensures consistent performance and longevity of the valve under various operational conditions. Additionally, the CXADCZV features extremely low leakage rates, with a maximum of less than one drop per minute (0.07 cc/min), ensuring efficient system operation with minimal fluid loss. This model is available with cracking pressures at 4, 30, and 75 psi (0.3, 2, and 5 bar), allowing flexibility depending on application requirements. The compact design includes a hex size of 3/4 in (19.1 mm) and requires an installation torque between 20 \u2013 25 lbf\u00b7ft (27 \u2013 33 Nm), making it easy to install in tight spaces without special tools. Weighing only about .20 lb (0.10 kg), the CXADCZV provides an efficient solution for enhancing hydraulic circuit performance without adding significant weight or complexity to the system setup.

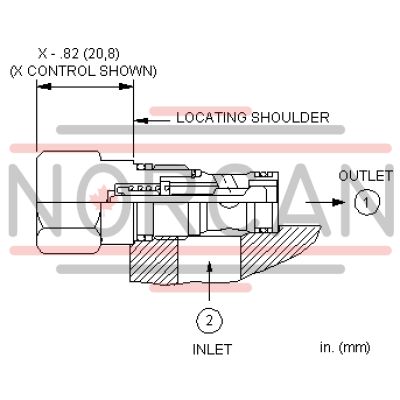

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Only available with 4, 30 and 75 psi (0,3, 2 and 5 bar) cracking pressures.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
