SUN HYDRAULICS
CXADLDN
$32.57 USD
- SUN HYDRAULICS
- Material:CXADLDN
- Model:CXAD-LDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXADLDN (CXADLDN) is a robust and efficient hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi (350 bar) at both ports. This model features a sidetonose flow direction, allowing free flow from inlet port 2 to outlet port 1 while blocking reverse flow, which makes it suitable for circuits requiring unidirectional flow control. The valve's construction includes Sun's floating style design which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. With a maximum flow capacity of 7.5 gpm (30 L/min), the CXADLDN offers reliable performance with extremely low leakage rates, not exceeding 1 drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system efficiency. It is available in cracking pressures of 4, 30, and 75 psi (0.3, 2, and 5 bar), providing versatility depending on the specific requirements of the application. The valve is designed for easy installation with a hex size of 3/4 in. (19.1 mm) and an installation torque between 20 - 25 lbf ft (27 - 33 Nm). Weighing just .20 lb (0.10 kg), it is lightweight yet durable enough to withstand demanding operational conditions. The CXADLDN uses Viton seals for high temperature and chemical resistance, ensuring long service life and reliability in various hydraulic systems.
The Sun Hydraulics CXADLDN (CXADLDN) is a robust and efficient hydraulic check valve designed for high-pressure applications, capable of handling up to 5000 psi (350 bar) at both ports. This model features a sidetonose flow direction, allowing free flow from inlet port 2 to outlet port 1 while blocking reverse flow, which makes it suitable for circuits requiring unidirectional flow control. The valve's construction includes Sun's floating style design which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. With a maximum flow capacity of 7.5 gpm (30 L/min), the CXADLDN offers reliable performance with extremely low leakage rates, not exceeding 1 drop per minute (0.07 cc/min), ensuring minimal fluid loss and enhanced system efficiency. It is available in cracking pressures of 4, 30, and 75 psi (0.3, 2, and 5 bar), providing versatility depending on the specific requirements of the application. The valve is designed for easy installation with a hex size of 3/4 in. (19.1 mm) and an installation torque between 20 - 25 lbf ft (27 - 33 Nm). Weighing just .20 lb (0.10 kg), it is lightweight yet durable enough to withstand demanding operational conditions. The CXADLDN uses Viton seals for high temperature and chemical resistance, ensuring long service life and reliability in various hydraulic systems.

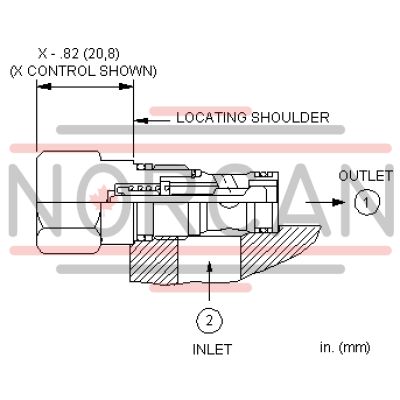

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Only available with 4, 30 and 75 psi (0,3, 2 and 5 bar) cracking pressures.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
