SUN HYDRAULICS
CXADLDV
$39.02 USD
- SUN HYDRAULICS
- Material:CXADLDV
- Model:CXAD-LDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXADLDV (CXADLDV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model operates as a side-to-nose check valve, allowing free flow from the inlet port 2 to the outlet port 1 while blocking flow in the reverse direction. It is specifically engineered for situations where manifold drilling inaccuracies exist in existing circuits, providing a solution without the need for re-engineering the entire system. The CXADLDV supports a maximum operating pressure of 5000 psi (350 bar) at both ports and offers various cracking pressures at 4, 30, and 75 psi (0.3, 2, and 5 bar), catering to different application needs. With a flow capacity of up to 7.5 gpm (30 L/min), it is slightly less efficient than models with a nose-to-side configuration but remains effective for many setups. This valve is noted for its exceptionally low leakage rate, less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and efficient operation. Constructed with Sun\u2019s floating style design, the CXADLDV minimizes risks related to internal parts binding which might occur due to over-torquing during installation or variations in cavity/cartridge machining. This feature enhances the durability and reliability of the valve under various operating conditions. The compact design includes a hex size of 3/4 in. (19.1 mm) and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm). Weighing just .20 lb (0.10 kg), it integrates seamlessly into hydraulic systems without adding significant weight or bulk. For maintenance or repairs, it utilizes Viton seals as detailed in kit number: 990162006. Overall, the Sun Hydraulics CXADLDV check valve is an essential component for hydraulic systems requiring precise fluid control with minimal leakage and high-pressure tolerance.
The Sun Hydraulics CXADLDV (CXADLDV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model operates as a side-to-nose check valve, allowing free flow from the inlet port 2 to the outlet port 1 while blocking flow in the reverse direction. It is specifically engineered for situations where manifold drilling inaccuracies exist in existing circuits, providing a solution without the need for re-engineering the entire system. The CXADLDV supports a maximum operating pressure of 5000 psi (350 bar) at both ports and offers various cracking pressures at 4, 30, and 75 psi (0.3, 2, and 5 bar), catering to different application needs. With a flow capacity of up to 7.5 gpm (30 L/min), it is slightly less efficient than models with a nose-to-side configuration but remains effective for many setups. This valve is noted for its exceptionally low leakage rate, less than one drop per minute (0.07 cc/min), ensuring minimal fluid loss and efficient operation. Constructed with Sun\u2019s floating style design, the CXADLDV minimizes risks related to internal parts binding which might occur due to over-torquing during installation or variations in cavity/cartridge machining. This feature enhances the durability and reliability of the valve under various operating conditions. The compact design includes a hex size of 3/4 in. (19.1 mm) and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm). Weighing just .20 lb (0.10 kg), it integrates seamlessly into hydraulic systems without adding significant weight or bulk. For maintenance or repairs, it utilizes Viton seals as detailed in kit number: 990162006. Overall, the Sun Hydraulics CXADLDV check valve is an essential component for hydraulic systems requiring precise fluid control with minimal leakage and high-pressure tolerance.

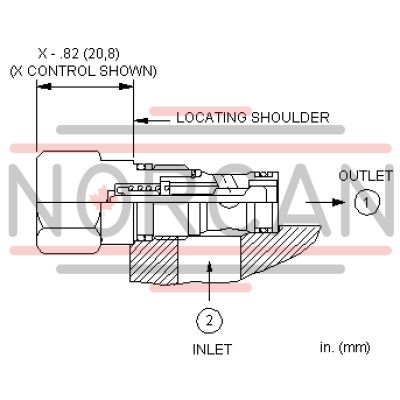

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Only available with 4, 30 and 75 psi (0,3, 2 and 5 bar) cracking pressures.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
