SUN HYDRAULICS
CXADLEV
$37.03 USD
- SUN HYDRAULICS
- Material:CXADLEV
- Model:CXAD-LEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXADLEV (CXADLEV) is a high-performance check valve designed for hydraulic applications requiring reliable one-way flow and tight shut-off to prevent reverse flow. This model is part of the T-16A series and features a sidetoneose check configuration, which is essential in scenarios where manifold drilling orientations are incorrect, thus serving as a circuit saver. The CXADLEV operates optimally with a maximum flow capacity of 7.5 gpm (30 L/min) and can withstand pressures up to 5000 psi (350 bar) at both ports. The valve's construction includes Sun's floating style design, which significantly reduces the risk of internal parts binding due to over-torquing during installation or variations in cavity/cartridge machining. This ensures consistent performance and longevity of the valve under various operational conditions. The CXADLEV offers exceptionally low leakage rates, with a maximum of less than one drop per minute (0.07 cc/min), ensuring efficiency and minimal fluid loss in critical applications. Available only with cracking pressures of 4, 30, and 75 psi (0.3, 2, and 5 bar), this model provides versatility for different system requirements. The valve dimensions include a hex size of 3/4 inch (19.1 mm) and an installation torque range of 20 - 25 lbf.ft (27 - 33 Nm), making it easy to integrate into existing hydraulic circuits without extensive modifications. Weighing just 0.20 lb (0.10 kg), the CXADLEV is lightweight yet robust enough to handle demanding industrial applications where precision fluid control is paramount.
The Sun Hydraulics CXADLEV (CXADLEV) is a high-performance check valve designed for hydraulic applications requiring reliable one-way flow and tight shut-off to prevent reverse flow. This model is part of the T-16A series and features a sidetoneose check configuration, which is essential in scenarios where manifold drilling orientations are incorrect, thus serving as a circuit saver. The CXADLEV operates optimally with a maximum flow capacity of 7.5 gpm (30 L/min) and can withstand pressures up to 5000 psi (350 bar) at both ports. The valve's construction includes Sun's floating style design, which significantly reduces the risk of internal parts binding due to over-torquing during installation or variations in cavity/cartridge machining. This ensures consistent performance and longevity of the valve under various operational conditions. The CXADLEV offers exceptionally low leakage rates, with a maximum of less than one drop per minute (0.07 cc/min), ensuring efficiency and minimal fluid loss in critical applications. Available only with cracking pressures of 4, 30, and 75 psi (0.3, 2, and 5 bar), this model provides versatility for different system requirements. The valve dimensions include a hex size of 3/4 inch (19.1 mm) and an installation torque range of 20 - 25 lbf.ft (27 - 33 Nm), making it easy to integrate into existing hydraulic circuits without extensive modifications. Weighing just 0.20 lb (0.10 kg), the CXADLEV is lightweight yet robust enough to handle demanding industrial applications where precision fluid control is paramount.

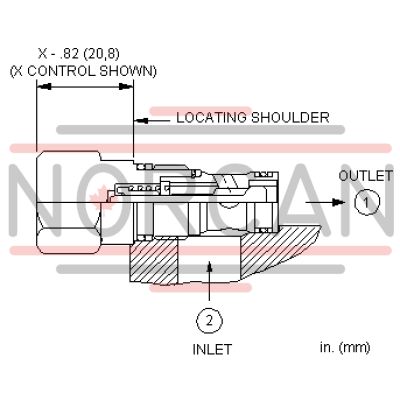

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Only available with 4, 30 and 75 psi (0,3, 2 and 5 bar) cracking pressures.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
