SUN HYDRAULICS
CXADLZV
$40.01 USD
- SUN HYDRAULICS
- Material:CXADLZV
- Model:CXAD-LZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXADLZV (CXADLZV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model features a unique freeflow, side-to-nose configuration that facilitates free flow from inlet port 2 to outlet port 1 while blocking reverse flow, making it an essential component for systems where manifold drillings might be incorrectly aligned. The CXADLZV can handle a maximum operating pressure of 5000 psi (350 bar) at both ports and offers a choice of cracking pressures at 4, 30, and 75 psi (0.3, 2, and 5 bar), accommodating various application needs. This two-port check valve has a flow capacity of approximately 7.5 gpm (30 L/min), which is about 30% less than models with a nose-to-side flow path but still sufficient for many circuit operations. It boasts an extremely low maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring efficient performance with minimal fluid loss. The valve's durability and reliability are enhanced by the Sun floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. The CXADLZV has been engineered to fit into a T-16A cavity and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm). It has a compact design with a weight of just .20 lb (0.10 kg) and utilizes Viton seals for improved performance under varying conditions. This model is particularly useful as a circuit saver in existing systems with incorrect manifold configurations, providing an effective solution without the need for extensive modifications or replacements.
The Sun Hydraulics CXADLZV (CXADLZV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control. This model features a unique freeflow, side-to-nose configuration that facilitates free flow from inlet port 2 to outlet port 1 while blocking reverse flow, making it an essential component for systems where manifold drillings might be incorrectly aligned. The CXADLZV can handle a maximum operating pressure of 5000 psi (350 bar) at both ports and offers a choice of cracking pressures at 4, 30, and 75 psi (0.3, 2, and 5 bar), accommodating various application needs. This two-port check valve has a flow capacity of approximately 7.5 gpm (30 L/min), which is about 30% less than models with a nose-to-side flow path but still sufficient for many circuit operations. It boasts an extremely low maximum leakage rate of less than one drop per minute (0.07 cc/min), ensuring efficient performance with minimal fluid loss. The valve's durability and reliability are enhanced by the Sun floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. The CXADLZV has been engineered to fit into a T-16A cavity and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm). It has a compact design with a weight of just .20 lb (0.10 kg) and utilizes Viton seals for improved performance under varying conditions. This model is particularly useful as a circuit saver in existing systems with incorrect manifold configurations, providing an effective solution without the need for extensive modifications or replacements.

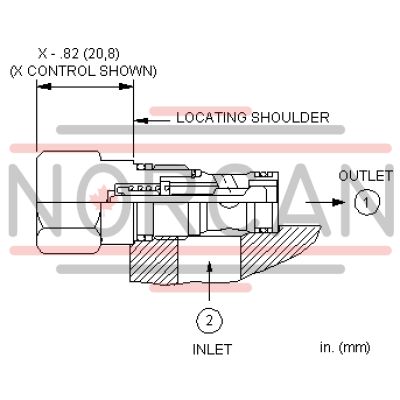

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Only available with 4, 30 and 75 psi (0,3, 2 and 5 bar) cracking pressures.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
