SUN HYDRAULICS
CXADXDN
$24.62 USD
- SUN HYDRAULICS
- Material:CXADXDN
- Model:CXAD-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXADXDN (CXADXDN) is a high-performance check valve designed for hydraulic circuits requiring reliable, one-way flow control. This model incorporates a sidetonose check valve configuration, which allows free flow from inlet port 2 to outlet port 1 while blocking flow in the reverse direction. The CXADXDN is particularly useful as a circuit saver in systems where manifold drillings might be incorrect, offering a practical solution without the need for extensive modifications. The valve is engineered to handle maximum operating pressures up to 5000 psi (350 bar) at both ports and offers exceptionally low leakage rates, less than 1 drop per minute (0.07 cc/min), ensuring efficient and clean operation. It supports various cracking pressures at 4, 30, and 75 psi (0.3, 2, and 5 bar), catering to different application needs. The CXADXDN features Sun\u2019s floating style construction which minimizes internal parts binding\u2014this is crucial for maintaining performance even when faced with installation torque variations or imperfect cavity/cartridge machining. With a flow capacity of up to 7.5 gpm (30 L/min), this model suits moderate flow applications and uses Viton seals for enhanced durability and chemical resistance. The valve's compact design weighs just 0.20 lb (0.10 kg) and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm), making it easy to install in tight spaces without special equipment. This model uses the T-162A cavity and is part of Sun Hydraulics\u2019 Series 0 collection of valves known for their robustness and reliability in various hydraulic systems.
The Sun Hydraulics CXADXDN (CXADXDN) is a high-performance check valve designed for hydraulic circuits requiring reliable, one-way flow control. This model incorporates a sidetonose check valve configuration, which allows free flow from inlet port 2 to outlet port 1 while blocking flow in the reverse direction. The CXADXDN is particularly useful as a circuit saver in systems where manifold drillings might be incorrect, offering a practical solution without the need for extensive modifications. The valve is engineered to handle maximum operating pressures up to 5000 psi (350 bar) at both ports and offers exceptionally low leakage rates, less than 1 drop per minute (0.07 cc/min), ensuring efficient and clean operation. It supports various cracking pressures at 4, 30, and 75 psi (0.3, 2, and 5 bar), catering to different application needs. The CXADXDN features Sun\u2019s floating style construction which minimizes internal parts binding\u2014this is crucial for maintaining performance even when faced with installation torque variations or imperfect cavity/cartridge machining. With a flow capacity of up to 7.5 gpm (30 L/min), this model suits moderate flow applications and uses Viton seals for enhanced durability and chemical resistance. The valve's compact design weighs just 0.20 lb (0.10 kg) and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm), making it easy to install in tight spaces without special equipment. This model uses the T-162A cavity and is part of Sun Hydraulics\u2019 Series 0 collection of valves known for their robustness and reliability in various hydraulic systems.

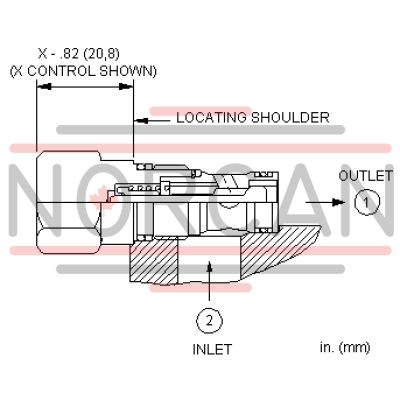

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Only available with 4, 30 and 75 psi (0,3, 2 and 5 bar) cracking pressures.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
