SUN HYDRAULICS
CXADXDV
$31.08 USD
- SUN HYDRAULICS
- Material:CXADXDV
- Model:CXAD-XDV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXADXDV (CXADXDV) is a precision-engineered check valve designed for hydraulic circuits requiring reliable, one-way flow control. This valve allows free flow from the inlet port 2 to the outlet port 1 while blocking flow in the reverse direction, making it an essential component for systems where unidirectional flow is critical. The CXADXDV model features a side-to-nose configuration, which is important to note as it influences the installation and flow direction compared to nose-to-side models. This model operates effectively under high pressure, with a maximum operating pressure of 5000 psi (350 bar) at both ports. It offers extremely low leakage rates, less than 1 drop per minute (0.07 cc/min), ensuring efficient performance and minimal fluid loss in demanding applications. The valve's design incorporates Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. The CXADXDV check valve is available with cracking pressures of 4, 30, and 75 psi (0.3, 2, and 5 bar), providing flexibility for different applications. It has a flow capacity of up to 7.5 gpm (30 L/min), suitable for various hydraulic systems. With a compact design weighing just 0.20 lb (0.10 kg), this valve is easy to integrate into existing setups without adding significant weight. Installation specifications include a hex size of 3/4 inch (19.1 mm) and an installation torque range of 20 - 25 lbf\u00b7ft (27 - 33 Nm). The use of Viton seals ensures compatibility with a wide range of hydraulic fluids and enhances durability under varying environmental conditions. Overall, the Sun Hydraulics CXADXDV check valve is an optimal solution for hydraulic systems requiring robust performance with minimal leakage and high-pressure endurance.
The Sun Hydraulics CXADXDV (CXADXDV) is a precision-engineered check valve designed for hydraulic circuits requiring reliable, one-way flow control. This valve allows free flow from the inlet port 2 to the outlet port 1 while blocking flow in the reverse direction, making it an essential component for systems where unidirectional flow is critical. The CXADXDV model features a side-to-nose configuration, which is important to note as it influences the installation and flow direction compared to nose-to-side models. This model operates effectively under high pressure, with a maximum operating pressure of 5000 psi (350 bar) at both ports. It offers extremely low leakage rates, less than 1 drop per minute (0.07 cc/min), ensuring efficient performance and minimal fluid loss in demanding applications. The valve's design incorporates Sun's floating style construction which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining. The CXADXDV check valve is available with cracking pressures of 4, 30, and 75 psi (0.3, 2, and 5 bar), providing flexibility for different applications. It has a flow capacity of up to 7.5 gpm (30 L/min), suitable for various hydraulic systems. With a compact design weighing just 0.20 lb (0.10 kg), this valve is easy to integrate into existing setups without adding significant weight. Installation specifications include a hex size of 3/4 inch (19.1 mm) and an installation torque range of 20 - 25 lbf\u00b7ft (27 - 33 Nm). The use of Viton seals ensures compatibility with a wide range of hydraulic fluids and enhances durability under varying environmental conditions. Overall, the Sun Hydraulics CXADXDV check valve is an optimal solution for hydraulic systems requiring robust performance with minimal leakage and high-pressure endurance.

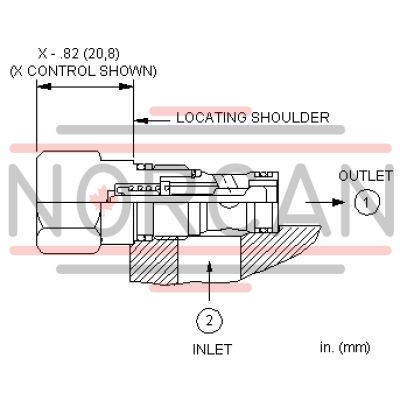

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Only available with 4, 30 and 75 psi (0,3, 2 and 5 bar) cracking pressures.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
