SUN HYDRAULICS
CXADXZN
$25.62 USD
- SUN HYDRAULICS
- Material:CXADXZN
- Model:CXAD-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXADXZN (CXADXZN) is a high-performance check valve designed for hydraulic applications requiring reliable one-way flow and minimal leakage. This model operates under a maximum pressure of 5000 psi (350 bar) and is suitable for systems where flow needs to be controlled precisely from port 2 to port 1, with the capacity for this directional flow being around 30% less than models with a nose-to-side configuration. The valve\u2019s design incorporates Sun\u2019s floating style construction, which helps prevent internal part misalignment and binding that can occur due to installation torque or machining variations in the cavity/cartridge. The CXADXZN features extremely low leakage rates, not exceeding 1 drop per minute (0.07 cc/min), ensuring efficient operation even under stringent conditions. It supports various cracking pressures at 4, 30, and 75 psi (0.3, 2, and 5 bar), allowing flexibility depending on the application requirements. The valve is housed in a T162A cavity and belongs to the Series 0 lineup from Sun Hydraulics. Installation specifications include a valve hex size of 3/4 in (19.1 mm) and an installation torque of between 20-25 lbf ft (27-33 Nm). The model's weight is minimal at approximately .20 lb (0.10 kg), contributing to ease of handling and integration into existing hydraulic systems without significant adjustments to the manifold setup. This check valve is ideal for circuit correction applications where manifold drillings are incorrect or in setups requiring precise control over fluid flow direction and minimal leakage.
The Sun Hydraulics CXADXZN (CXADXZN) is a high-performance check valve designed for hydraulic applications requiring reliable one-way flow and minimal leakage. This model operates under a maximum pressure of 5000 psi (350 bar) and is suitable for systems where flow needs to be controlled precisely from port 2 to port 1, with the capacity for this directional flow being around 30% less than models with a nose-to-side configuration. The valve\u2019s design incorporates Sun\u2019s floating style construction, which helps prevent internal part misalignment and binding that can occur due to installation torque or machining variations in the cavity/cartridge. The CXADXZN features extremely low leakage rates, not exceeding 1 drop per minute (0.07 cc/min), ensuring efficient operation even under stringent conditions. It supports various cracking pressures at 4, 30, and 75 psi (0.3, 2, and 5 bar), allowing flexibility depending on the application requirements. The valve is housed in a T162A cavity and belongs to the Series 0 lineup from Sun Hydraulics. Installation specifications include a valve hex size of 3/4 in (19.1 mm) and an installation torque of between 20-25 lbf ft (27-33 Nm). The model's weight is minimal at approximately .20 lb (0.10 kg), contributing to ease of handling and integration into existing hydraulic systems without significant adjustments to the manifold setup. This check valve is ideal for circuit correction applications where manifold drillings are incorrect or in setups requiring precise control over fluid flow direction and minimal leakage.

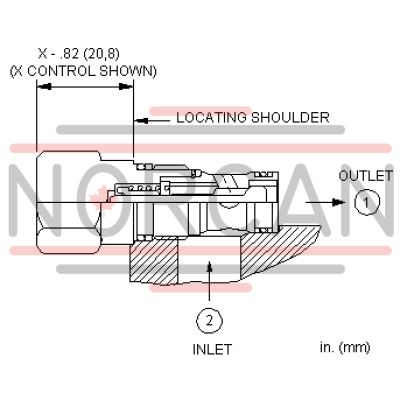

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Only available with 4, 30 and 75 psi (0,3, 2 and 5 bar) cracking pressures.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
