SUN HYDRAULICS
CXBAXAE
$125.89 USD
- SUN HYDRAULICS
- Material:CXBAXAE
- Model:CXBA-XAE
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBAXAE (CXBAXAE) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model facilitates free flow from the inlet port 1 to the outlet port 2 while effectively blocking flow in the reverse direction, ensuring efficient operation in various applications. The CXBAXAE valve is characterized by its extremely low leakage rate, with a maximum of less than 1 drop per minute (0.07 cc/min), making it ideal for systems where minimal fluid loss is critical. Engineered to handle a maximum operating pressure of 5000 psi (350 bar) at both ports, this valve can support substantial pressure requirements, suitable for heavy-duty operations. It has a flow capacity of up to 10 gpm (40 L/min), accommodating moderate to high flow rates within hydraulic circuits. The valve's construction includes Sun's proprietary floating style design which minimizes internal part misalignment and potential binding caused by installation torque or machining variations. For environments using phosphate ester fluids, cartridges equipped with EPDM seals are available; however, these seals must not be exposed to petroleum-based fluids as they could degrade. Installation specifications include a hex size of 3/4 in. (19.1 mm) and an installation torque range between 20 - 25 lbf\u00b7ft (27 - 33 Nm). The lightweight design of the model weighs only about 0.20 lb (0.10 kg), facilitating ease of installation and handling during maintenance or system setup processes.
The Sun Hydraulics CXBAXAE (CXBAXAE) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model facilitates free flow from the inlet port 1 to the outlet port 2 while effectively blocking flow in the reverse direction, ensuring efficient operation in various applications. The CXBAXAE valve is characterized by its extremely low leakage rate, with a maximum of less than 1 drop per minute (0.07 cc/min), making it ideal for systems where minimal fluid loss is critical. Engineered to handle a maximum operating pressure of 5000 psi (350 bar) at both ports, this valve can support substantial pressure requirements, suitable for heavy-duty operations. It has a flow capacity of up to 10 gpm (40 L/min), accommodating moderate to high flow rates within hydraulic circuits. The valve's construction includes Sun's proprietary floating style design which minimizes internal part misalignment and potential binding caused by installation torque or machining variations. For environments using phosphate ester fluids, cartridges equipped with EPDM seals are available; however, these seals must not be exposed to petroleum-based fluids as they could degrade. Installation specifications include a hex size of 3/4 in. (19.1 mm) and an installation torque range between 20 - 25 lbf\u00b7ft (27 - 33 Nm). The lightweight design of the model weighs only about 0.20 lb (0.10 kg), facilitating ease of installation and handling during maintenance or system setup processes.

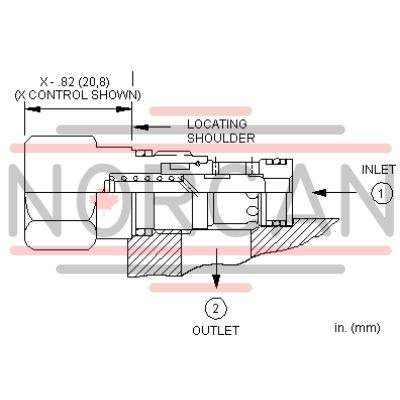

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
