CXBAXDN
$27.80 USD
- SUN HYDRAULICS
- Material:CXBAXDN
- Model:CXBA-XDN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBAXDN (CXBAXDN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model ensures free flow from inlet port 1 to outlet port 2 while blocking reverse flow, making it ideal for applications where backflow prevention is critical. The CXBAXDN can handle a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of up to 10 gpm (40 L/min), ensuring it meets the demands of high-pressure systems. This valve features extremely low leakage rates, with a maximum of less than 1 drop per minute (0.07 cc/min), which contributes to system efficiency and reduces fluid loss. The construction incorporates Sun's floating style design which minimizes potential internal binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design detail enhances the durability and reliability of the valve under varying operational conditions. The CXBAXDN is housed in a T-16A cavity and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm). It has a compact model weight of only .20 lb (0.10 kg) and uses Viton seals for its cartridges, which are recommended for systems using phosphate ester fluids; however, exposure to petroleum-based fluids should be avoided as it can damage the seals. Overall, the Sun Hydraulics CXBAXDN check valve is an essential component for hydraulic circuits that demand robust performance, tight leakage control, and reliable operation under high pressures. Its specialized features make it suitable for a wide range of industrial applications where fluid control is paramount.
The Sun Hydraulics CXBAXDN (CXBAXDN) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model ensures free flow from inlet port 1 to outlet port 2 while blocking reverse flow, making it ideal for applications where backflow prevention is critical. The CXBAXDN can handle a maximum operating pressure of 5000 psi (350 bar) and has a flow capacity of up to 10 gpm (40 L/min), ensuring it meets the demands of high-pressure systems. This valve features extremely low leakage rates, with a maximum of less than 1 drop per minute (0.07 cc/min), which contributes to system efficiency and reduces fluid loss. The construction incorporates Sun's floating style design which minimizes potential internal binding that could result from excessive installation torque or variations in cavity/cartridge machining. This design detail enhances the durability and reliability of the valve under varying operational conditions. The CXBAXDN is housed in a T-16A cavity and requires an installation torque between 20 - 25 lbf ft (27 - 33 Nm). It has a compact model weight of only .20 lb (0.10 kg) and uses Viton seals for its cartridges, which are recommended for systems using phosphate ester fluids; however, exposure to petroleum-based fluids should be avoided as it can damage the seals. Overall, the Sun Hydraulics CXBAXDN check valve is an essential component for hydraulic circuits that demand robust performance, tight leakage control, and reliable operation under high pressures. Its specialized features make it suitable for a wide range of industrial applications where fluid control is paramount.

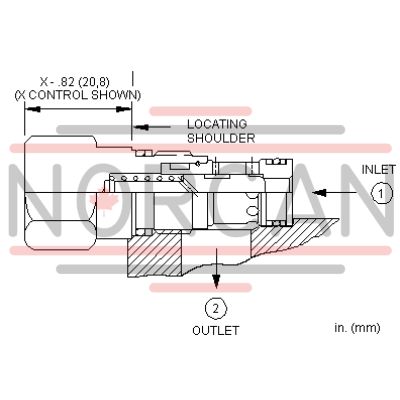

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
