SUN HYDRAULICS
CXBAXEV
$32.27 USD
- SUN HYDRAULICS
- Material:CXBAXEV
- Model:CXBA-XEV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXBAXEV (CXBAXEV) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model is specifically engineered to allow free flow from the inlet port 1 to the outlet port 2 while blocking reverse flow, ensuring efficient operation in various hydraulic applications. The CXBAXEV is capable of handling maximum operating pressures up to 5000 psi (350 bar) and has a flow capacity of 10 gpm (40 L/min), making it suitable for a broad range of medium to high-pressure applications. This valve features extremely low leakage rates, with a maximum of less than one drop per minute (0.07 cc/min), which is critical for maintaining system integrity and performance. The construction of the CXBAXEV incorporates Sun's floating style design which minimizes potential internal parts binding that could otherwise occur due to excessive installation torque or variations in cavity/cartridge machining. It\u2019s important to note that cartridges configured with EPDM seals are intended for use with phosphate ester fluids; exposure to petroleum-based fluids can damage these seals. The model also supports an easy installation process with a valve hex size of 3/4 in. (19.1 mm) and an installation torque requirement between 20 - 25 lbf ft (27 - 33 Nm). Weighing just .20 lb (0.10 kg), the CXBAXEV combines lightweight design with robust performance, making it an optimal choice for enhancing hydraulic system reliability and efficiency.
The Sun Hydraulics CXBAXEV (CXBAXEV) is a high-performance check valve designed for hydraulic systems requiring reliable, one-way flow control. This model is specifically engineered to allow free flow from the inlet port 1 to the outlet port 2 while blocking reverse flow, ensuring efficient operation in various hydraulic applications. The CXBAXEV is capable of handling maximum operating pressures up to 5000 psi (350 bar) and has a flow capacity of 10 gpm (40 L/min), making it suitable for a broad range of medium to high-pressure applications. This valve features extremely low leakage rates, with a maximum of less than one drop per minute (0.07 cc/min), which is critical for maintaining system integrity and performance. The construction of the CXBAXEV incorporates Sun's floating style design which minimizes potential internal parts binding that could otherwise occur due to excessive installation torque or variations in cavity/cartridge machining. It\u2019s important to note that cartridges configured with EPDM seals are intended for use with phosphate ester fluids; exposure to petroleum-based fluids can damage these seals. The model also supports an easy installation process with a valve hex size of 3/4 in. (19.1 mm) and an installation torque requirement between 20 - 25 lbf ft (27 - 33 Nm). Weighing just .20 lb (0.10 kg), the CXBAXEV combines lightweight design with robust performance, making it an optimal choice for enhancing hydraulic system reliability and efficiency.

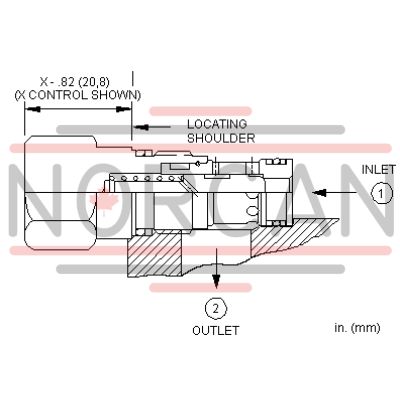

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 10 gpm40 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
