SUN HYDRAULICS
CXBBBAV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

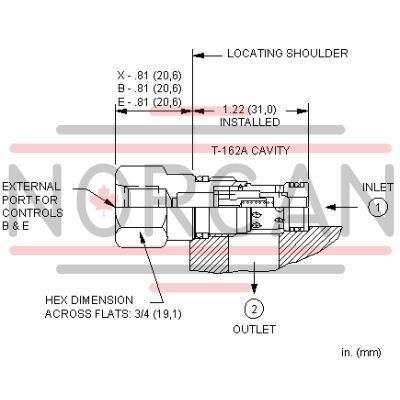

The Sun Hydraulics CXBBBAV (CXBBBAV) is a high-performance check valve designed for hydraulic applications requiring reliable, one-way flow control and minimal leakage. This model operates effectively with a maximum operating pressure of 5000 psi (350 bar) and supports flow rates up to 10 gpm (40 L/min). The CXBBBAV utilizes a two-port configuration within the T-16A cavity, ensuring compatibility with similar frame sizes while necessitating careful attention to the direction of flow paths. This valve is distinguished by its extremely low leakage rate, less than 1 drop per minute (0.07 cc/min), making it an excellent choice for systems where fluid conservation and cleanliness are priorities. Its construction features Sun\u2019s floating style design which helps prevent internal parts from binding due to excessive installation torque or variations in cavity/cartridge machining, thereby enhancing operational reliability and lifespan. Moreover, the CXBBBAV can be installed with a hex size of 3/4 in. (19.1 mm) and requires an installation torque between 20 \u2013 25 lbf ft (27 \u2013 33 Nm). The valve itself weighs approximately 0.20 lb (0.10 kg), making it lightweight yet robust enough for demanding applications. The unit also includes a seal kit featuring Viton components, ensuring high resistance to heat and chemicals. This model is ideally suited for applications where free flow from inlet to outlet is necessary while preventing backflow efficiently, thereby maintaining system integrity and performance.
